Male Jic X Female Jic Swivel

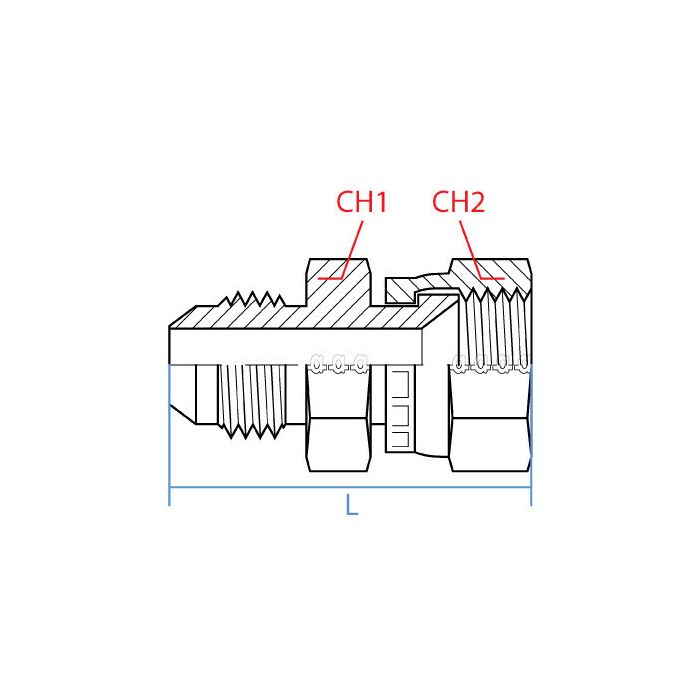

CH1 Width 32mm	CH2 Width 38mm	L Length 62mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-12-16	Product Weight 0.50 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/4 JIC line to a 1 inch JIC port, is this the right adapter?

Question by: Ricky M on Nov 12, 2025, 6:04 PM

For that size step, it matches what you described. Side 1 is a 3/4 inch male JIC with a 1-1/16 - 12 UN thread callout, and side 2 is a 1 inch female JIC swivel with a 1-5/16 - 12 UN callout.

Answer by: Customer Support on Nov 14, 2025, 10:13 AM

What size is the male end on this fitting? I need to make sure it'll fit my setup.

Question by: Chad S on May 22, 2025, 11:53 AM

The male JIC side is 3/4" with a 1-1/16 - 12 UN callout.

Answer by: Customer Support on May 23, 2025, 3:10 PM
