Male Jic X Female Jic Swivel

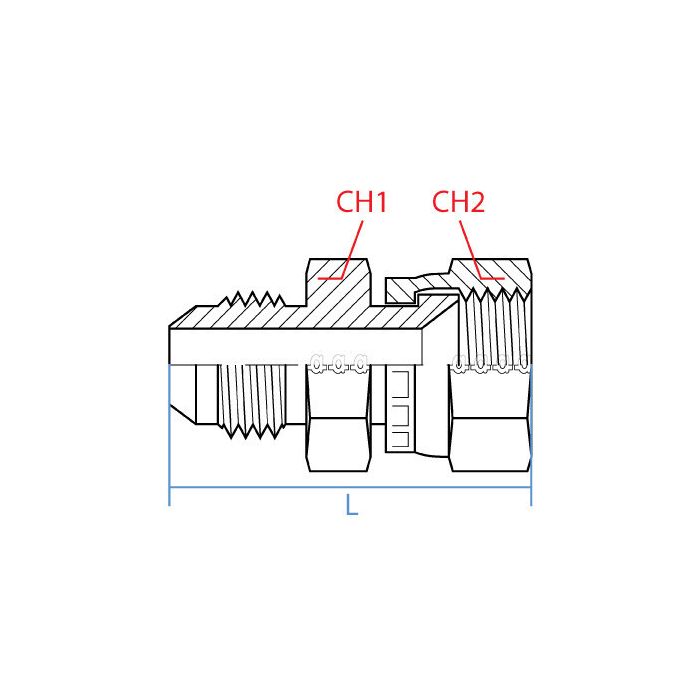

CH1 Width 28.5mm	CH2 Width 32mm	L Length 62mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-12-12	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose with a 3/4 JIC end already, will this let me hook it to another 3/4 JIC and still have a swivel on one side?

Question by: Dean C on Jan 2, 2026, 10:43 AM

For tying two same-size JIC ends together, this fitting is a straight male JIC to female JIC swivel, both 3/4 inch with 1-1/16 - 12 UN threads. The female side swivels, so you can make up the connection without having to spin the hose or tube around.

Answer by: Customer Support on Jan 4, 2026, 6:23 AM

both ends are 3/4 JIC on this thing? just want to make sure before i order cause i've been burned before getting the wrong size

Question by: Pete B on Jan 29, 2026, 2:50 PM

both sides are 3/4" with a 1-1/16 - 12 UN thread on each end. Male JIC on one side, female JIC on the other. Same size all the way through, so if your line and port are both 3/4" JIC, this one fits the bill without any adapting between different sizes.

Answer by: Customer Support on Jan 30, 2026, 5:35 PM
