Male Jic X Female Jic Swivel 9020-10-10

Specifications

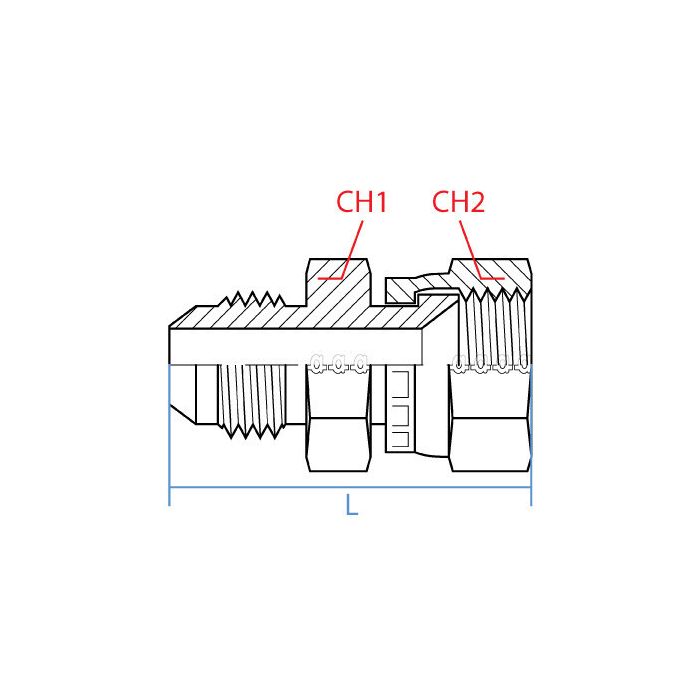

CH1 Width 25mm	CH2 Width 25mm	L Length 54mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-10-10	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting hold up alright in a hydraulic system running about 2500 psi? Don't want no leaks!

Question by: Randy T on May 6, 2025, 8:17 PM

Constructed from durable steel, this adapter should provide a robust connection for hydraulic systems. It's designed for demanding environments where reliable fluid transfer is essential.

Answer by: Customer Support on May 8, 2025, 7:08 AM

Got a fitting that keeps wanting to rotate on me mid-line, would swapping in a male JIC to female JIC swivel fix that kind of problem?

Question by: Rick M on Jul 7, 2025, 8:44 AM

A swivel on the female end is exactly what handles that situation. The female side of this fitting is designed to rotate freely, which lets you make up a connection without twisting the hose or locking yourself into one orientation. Both sides are 5/8" JIC on a 7/8-14 UNF thread, so as long as your existing fittings match that spec, you can drop this in and take the torque stress off your line.

Answer by: Customer Support on Jul 8, 2025, 7:06 PM

trying to swap an adapter out, are both ends on this one 7/8-14 UNF and 5/8 JIC?

Question by: Lee L on Sep 3, 2025, 9:09 AM

Both sides are JIC with a 7/8 - 14 UNF thread callout, sized as 5/8 inch. One end is male JIC and the other is a female JIC swivel.

Answer by: Customer Support on Sep 5, 2025, 6:26 AM
