Male Jic X Female Jic Swivel

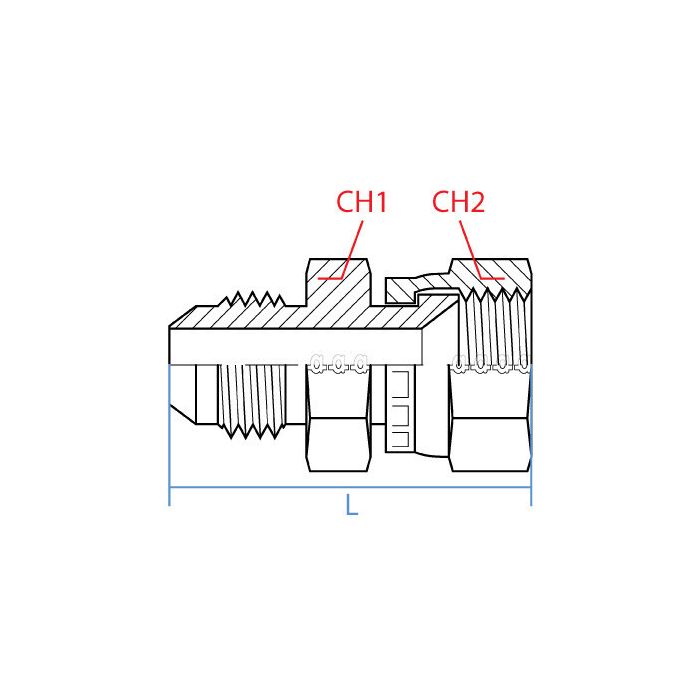

CH1 Width 27mm	CH2 Width 31mm	L Length 56mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-08-12	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work with a standard JIC setup, or is it some kinda proprietary thing?

Question by: Danny M on Nov 6, 2025, 7:07 AM

This is a standard male JIC to female JIC swivel fitting, made of steel for durability. It'll work with any standard JIC connection of the correct size.

Answer by: Customer Support on Nov 7, 2025, 12:13 PM

trying to match up an old fitting, is this one a straight male JIC to female JIC swivel with 1/2 on one end and 3/4 on the other?

Question by: Johnny G on Aug 3, 2025, 6:48 AM

For fit and thread details, this is a straight Adaptall steel fitting with a male JIC on side 1 sized 1/2 inch with a 3/4 - 16 UNF callout, and a female JIC swivel on side 2 sized 3/4 inch with a 1-1/16 - 12 UN callout.

Answer by: Customer Support on Aug 4, 2025, 7:26 AM
