Male Jic X Female Jic Swivel 9020-08-08

Specifications

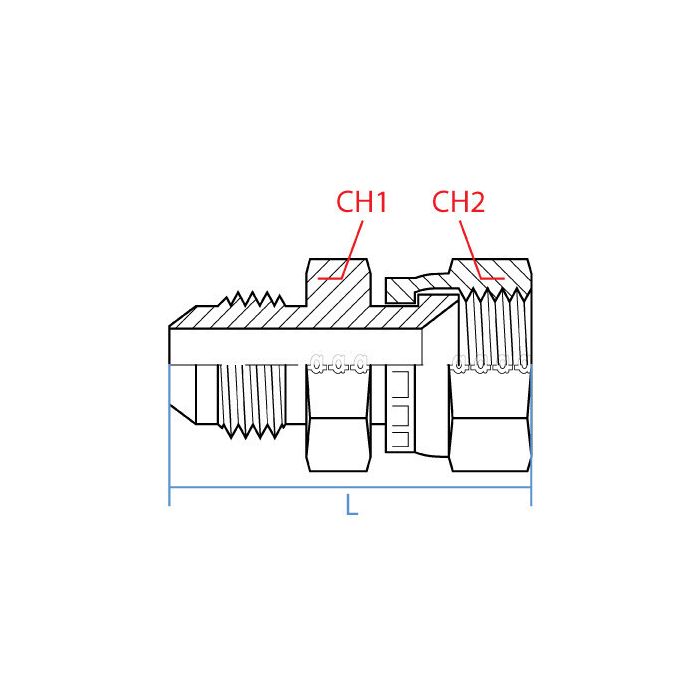

CH1 Width 20mm	CH2 Width 22mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-08-08	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hose that wants to twist up every time I go to hook it in, would something like this swivel fitting fix that problem?

Question by: Wade H on Oct 30, 2025, 3:47 PM

That's the kind of situation this fitting handles. The female end rotates independently, so when you're threading the connection in, the hose doesn't have to spin with it. That rotational freedom keeps tension and twist from building up during installation or any time you reposition the line. Both ends are 3/4-16 UNF, so as long as you're working with 1/2" JIC fittings on both sides, it'll drop right in without needing any size adapters.

Answer by: Customer Support on Nov 1, 2025, 6:47 AM

What size are the threads on this swivel fitting?

Question by: Kurt R on Sep 6, 2025, 6:52 PM

The threads on both ends of this JIC swivel are 3/4-16 UNF, which are the same size.

Answer by: Customer Support on Sep 8, 2025, 3:20 PM

trying to swap out an adapter on a hose, is this one 1/2 jic on both ends or is it mixed?

Question by: Travis H on Sep 23, 2025, 8:23 AM

Both ends are 1/2 inch JIC with the same 3/4-16 UNF thread callout. One side is male JIC and the other side is a female JIC swivel, so it mates to a same size JIC flare connection without changing thread size.

Answer by: Customer Support on Sep 24, 2025, 7:33 PM
