Male Jic X Female Jic Swivel

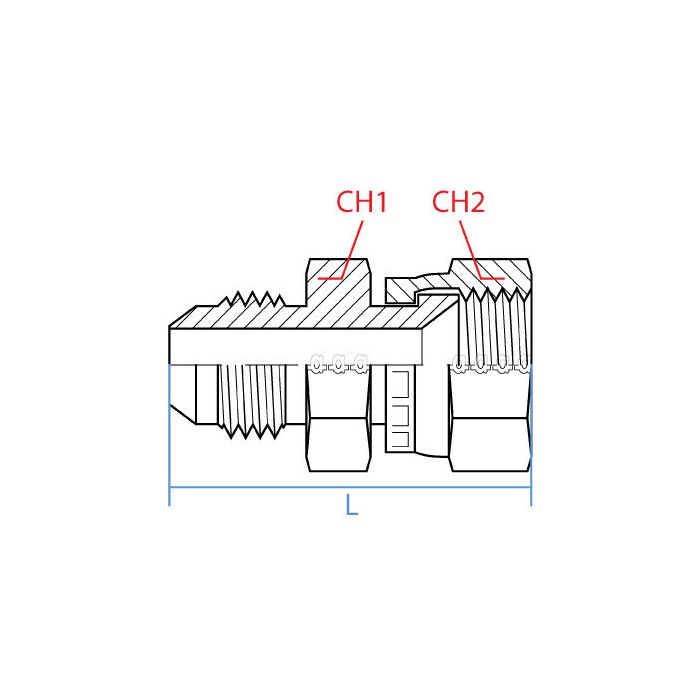

CH1 Width 16mm	CH2 Width 17mm	L Length 41mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-06-06	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work for connecting two JIC hoses?

Question by: Danny H on Nov 23, 2025, 3:19 PM

This Adaptall fitting connects male JIC to female JIC, so it should work for connecting compatible hoses. Just make sure the 3/8" size and 9/16 - 18 UNF callout match your hoses.

Answer by: Customer Support on Nov 25, 2025, 6:20 AM

both sides are 3/8 JIC on this thing, does that mean it's just keeping the same line size all the way through, or is there some kind of transition happening inside?

Question by: Sheila P on May 9, 2025, 7:29 PM

Same size all the way through. Both ends are 3/8" with a 9/16-18 UNF thread on each side, so there's no reduction or transition involved. The swivel function is what makes it useful here, the female end can rotate independently, which takes the twist out of a hose or line without having to reposition the whole assembly. Steel construction, straight body, 41mm overall length. Good straightforward inline fitting when you need articulation without changing anything about the line sizing.

Answer by: Customer Support on May 11, 2025, 6:34 PM
