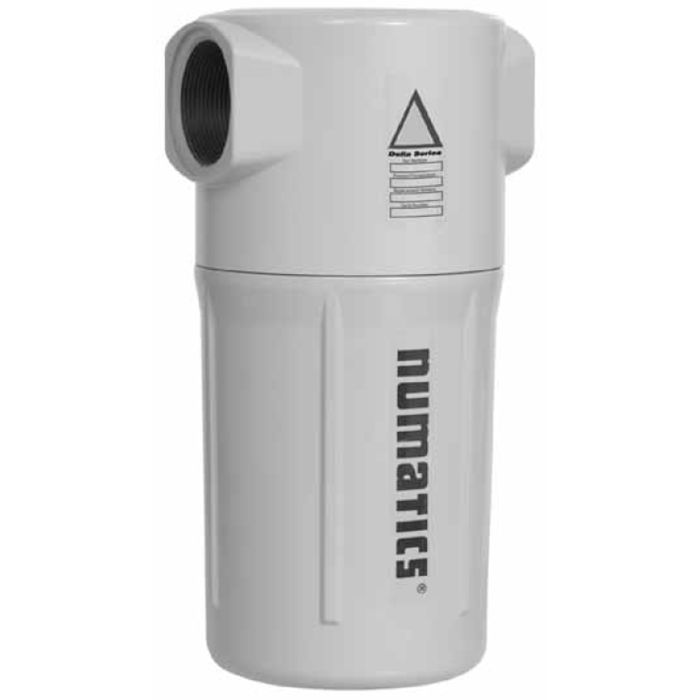

Delta 901X Series Air Line Filters, Up To 250 PSI

Application	Bulk liquid and solid contamination removal. Downstream from compressor/aftercoolers. Protection for coalescing elements from large liquid loading. Refrigerated compressed air dryers.
Features	The water separator is an ideal solution where water contamination is present. Water can damage pneumatic components, degrade your final product, and cause valves and cylinders to stick. The water separator utilizes an internal spinner to remove large quantities of contamination by centrifugal action. Water, debris, and rust are spun outward to the inside diameter of the bowl. Gravity then sends the contaminant to the bottom of the bowl for discharge.
Materials	Head 1/4 - 3: A380.0 Cast Aluminum – Anodized. Bowl 1/4 - 3: A380.0 Cast Aluminum – Anodized. Internal Separator Components: A380.0 Cast Aluminum – Anodized. Seals: Fluorocarbon (FKM). Standard Manual Drain: Brass
Maximum Inlet Pressure	250 psi. External Auto Drain maximum pressure 230 psi.
Maximum Operating Temperature	200 °F. Internal Auto Float Drain: 150 °F, Electronic Drain: 130 °F, External Auto Drain: 120 °F.

Products

Model Number	Flow Rating (SCFM)	Options	Price	Buy Now
F901X-04ABZ	90
