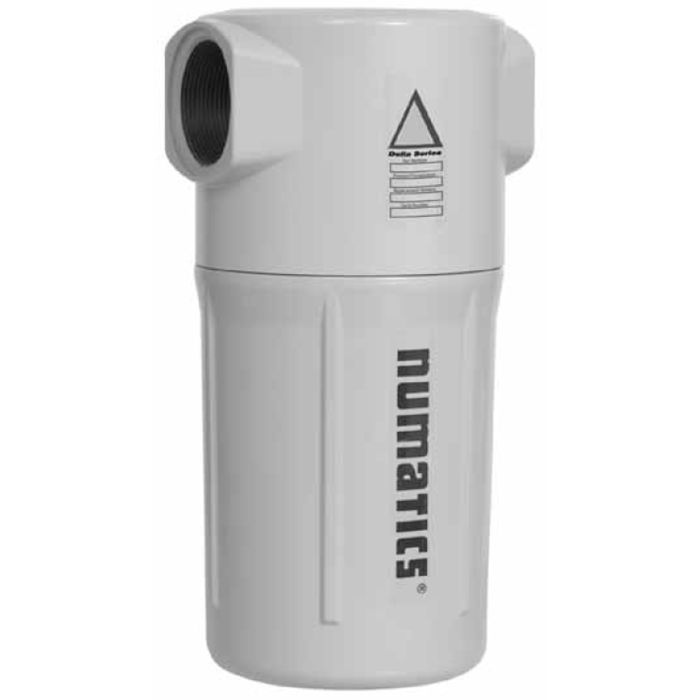

Delta 901X Series Air Line Filter, 1/2 Inch Ports, 90 SCFM Flow Rating, Internal Auto Float Drain, Mounting Brackets

Alternate Part Numbers
Alternate Part Number C1LB87, Alternate Part Number F901X-04AB
Brand
Numatics - C/O Asco Lp
Brand
Asco Lp Cylinder
Pack Size
1.00
UOM
EA
Flow Rating (SCFM)
90
Custom Options
Internal Auto Float Drain, Mounting Brackets
Port Size
1/2
Supplier Part Number
F901X-04ABZ
Product Weight
3.27 lbs

Product Questions & Answers

runs pretty hot in our compressor room during summer months, will this filter hold up around 180 or so degrees?
Question by: Roy R on Oct 28, 2025, 8:00 PM
Up to 200°F is the rated maximum operating temperature for the filter body itself. Worth knowing though, the internal auto float drain on this unit tops out at 150°F, so if your compressor room is consistently pushing toward that upper range, keep an eye on drain performance. The aluminum housing and fluorocarbon seals are built to handle heat reasonably well within those limits.
Answer by: Customer Support on Oct 30, 2025, 3:07 PM
What’s the highest temperature this filter can handle before it quits working right?
Question by: Tammy C on Oct 20, 2025, 2:47 PM
Operating temperature shouldn't exceed 200 degrees Fahrenheit if you want it to work as expected.
Answer by: Customer Support on Oct 21, 2025, 2:55 PM
