Male Bspp X F. Metric Swivel

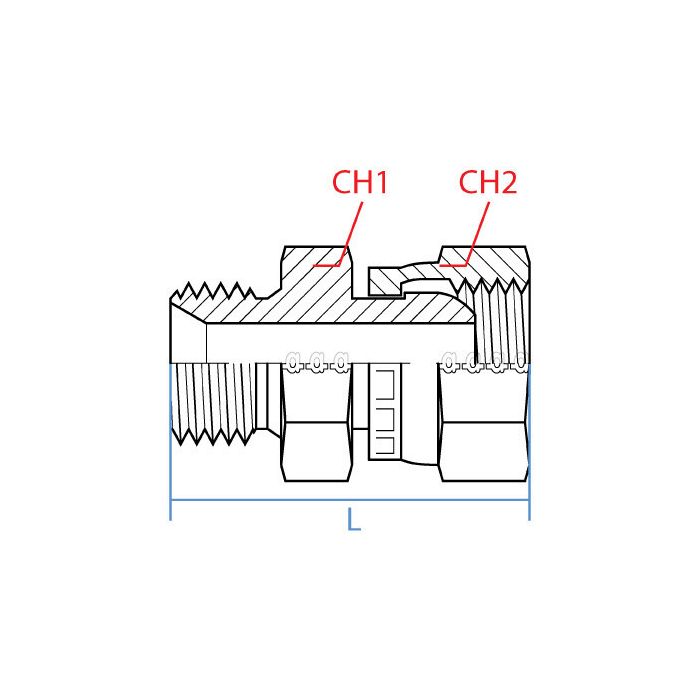

CH1 Width 32mm	CH2 Width 27mm	L Length 47.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-12-L15-22	Product Weight 0.30 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end with G 3/4-14 on it and the other side needs to land on M22 x 1.5, is this the right adapter?

Question by: Lynn A on Jun 12, 2025, 2:28 PM

For a BSPP to metric DIN tube hookup, this fitting matches a 3/4 inch male BSPP thread (G 3/4-14) on one end and a female metric DIN tube swivel connection (M22 x 1.5, L15) on the other.

Answer by: Customer Support on Jun 13, 2025, 6:30 PM
