Male Bspp X F. Metric Swivel

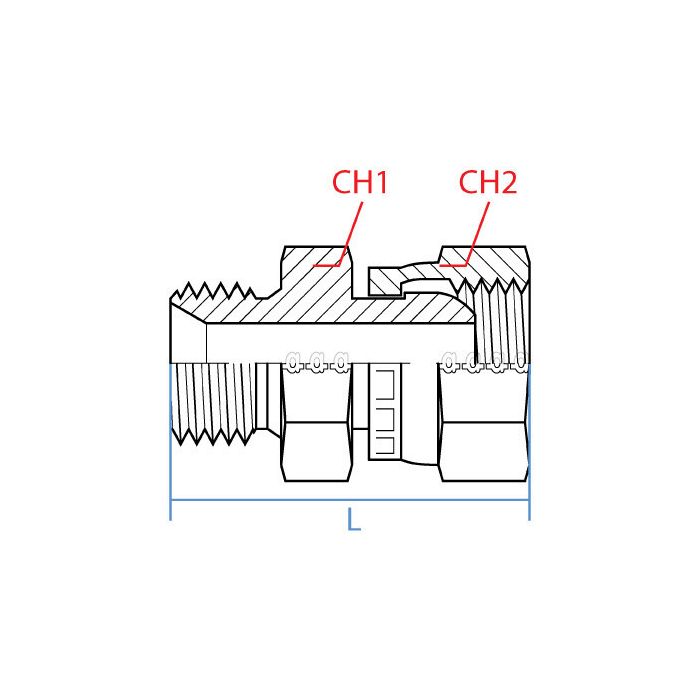

CH1 Width 32mm	CH2 Width 24mm	L Length 46.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-12-L12-18	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a fitting i pulled off a machine, is this one the straight adapter that goes from G 3/4 - 14 male over to an M18 x 1.5 female swivel?

Question by: Judy F on May 7, 2025, 4:52 PM

For that combo, you are looking at a straight steel adapter with a male BSPP side listed as G 3/4 - 14, and the other end is a female DIN tube swivel in size L12 with an M18 x 1.5 thread.

Answer by: Customer Support on May 9, 2025, 9:35 AM

What size wrench do I need for installing this thing?

Question by: Floyd M on Feb 3, 2026, 1:57 PM

This adapter requires a 32mm wrench for side 1 (the BSPP side) and a 24mm wrench for side 2 (the DIN tube side).

Answer by: Customer Support on Feb 4, 2026, 4:58 PM
