Male Bspp X F. Metric Swivel 9019-08-S16-24

Specifications

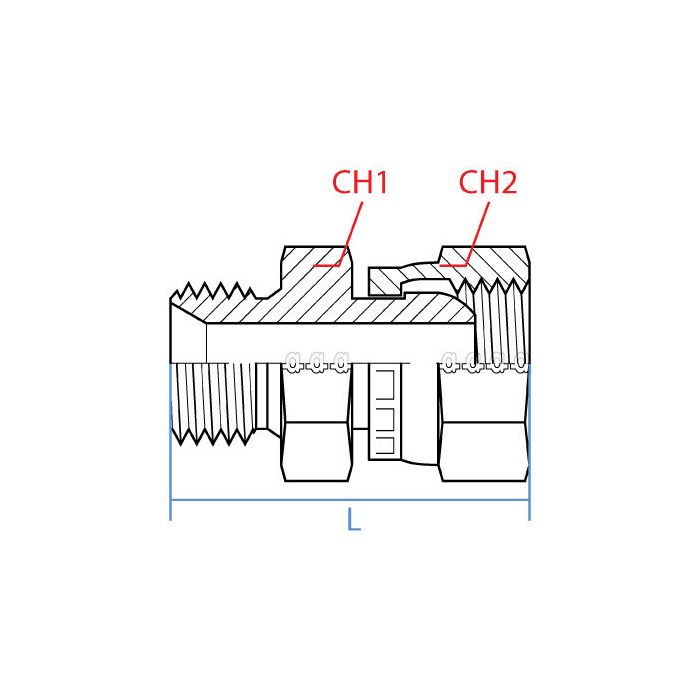

CH1 Width 27mm	CH2 Width 30mm	L Length 42.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-08-S16-24	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here adapter work with a metric tube that's M24 X 1.5? Just want to make sure before I order it.

Question by: Tony M on Jul 6, 2025, 10:55 AM

This adapter is designed to connect directly to an M24 X 1.5 female DIN tube, ensuring a secure and compatible fit for your hydraulic system.

Answer by: Customer Support on Jul 8, 2025, 6:53 AM

Got a hydraulic line running M24 x 1.5 DIN tube fittings on one end and need to tie into a BSPP port on the other side. this the right adapter for that?

Question by: Rick Y on Apr 7, 2025, 7:14 PM

That's the crossover this fitting handles. One end is a G 1/2-14 male BSPP connection and the other is an M24 x 1.5 female DIN tube swivel, so it bridges those two thread standards in a straight configuration. The female swivel side gives you a little rotational movement during assembly, which helps a lot when you're working in tight quarters and can't easily spin the line itself.

Answer by: Customer Support on Apr 9, 2025, 6:05 AM

trying to hook a G 1/2-14 port to a metric DIN tube, is this the right adapter?

Question by: Tony B on Aug 9, 2025, 12:07 PM

For that kind of hookup, it’s a straight steel adapter with a male BSPP G 1/2 - 14 on one end and a female DIN tube connection sized M24 x 1.5 on the other, so it matches those two connection callouts.

Answer by: Customer Support on Aug 11, 2025, 6:09 AM
