Male Bspp X F. Metric Swivel 9019-08-L15-22

Specifications

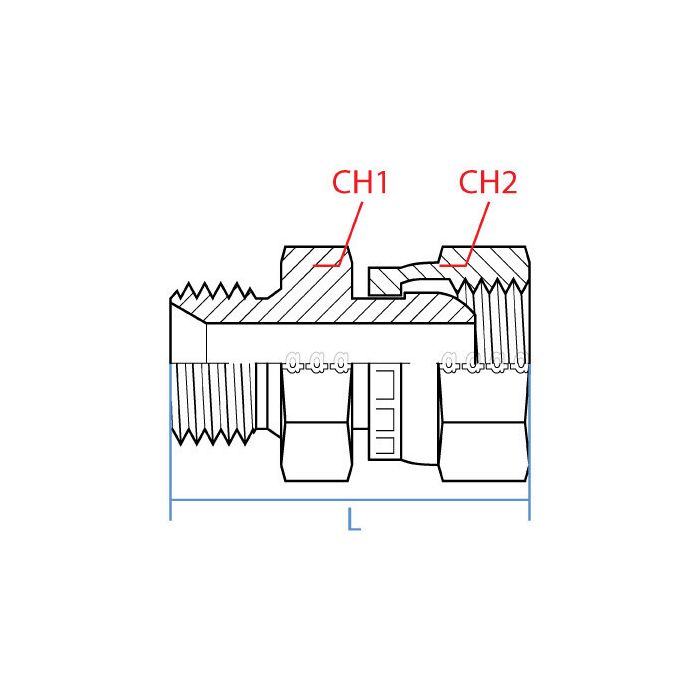

CH1 Width 27mm	CH2 Width 27mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-08-L15-22	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

So this fitting goes from a G 1/2 to an M22, right? Just makin' sure I'm readin' it right.

Question by: Ray W on Jun 15, 2025, 5:41 PM

That's correct. This fitting adapts from a G 1/2-14 male BSPP thread to an M22 x 1.5 female DIN tube swivel.

Answer by: Customer Support on Jun 17, 2025, 12:47 PM

fitting's got 27mm wrench flats on both ends, does that mean I can use the same wrench to snug up both sides without swapping tools?

Question by: Rhonda J on Oct 29, 2025, 1:08 PM

Same size on both ends, so yeah, one wrench handles the whole job. The G 1/2-14 BSPP side and the M22 x 1.5 DIN tube side both measure 27mm across the flats, which keeps things simple when you're working in a tight spot and don't want to be hunting for a second tool.

Answer by: Customer Support on Oct 30, 2025, 5:52 PM

trying to hook a g 1/2-14 port up to an m22x1.5 din tube end, is that what this fitting is for?

Question by: Glen B on Oct 2, 2025, 7:26 AM

For that exact thread changeover, it’s a straight steel adapter with a G 1/2-14 male BSPP on one side and an M22 x 1.5 female DIN tube swivel on the other.

Answer by: Customer Support on Oct 3, 2025, 6:12 PM
