Male Bspp X F. Metric Swivel

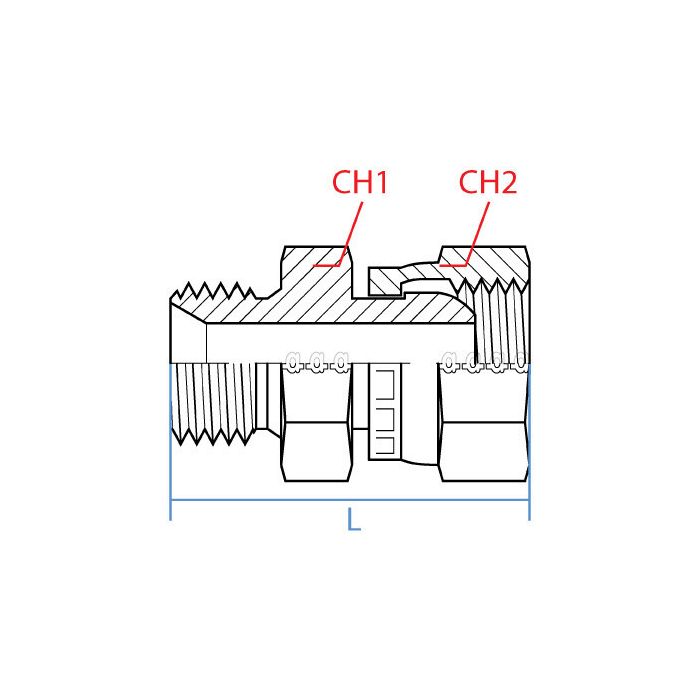

CH1 Width 27mm	CH2 Width 24mm	L Length 41mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-08-L12-18	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running a G 1/2 BSPP port and I need to hook up an M18 x 1.5 metric DIN tube line to it, this fitting gonna bridge that gap?

Question by: Curt G on May 8, 2025, 12:33 PM

That's what this one's built for. One end is a G 1/2 - 14 male BSPP thread, and the other accepts a female M18 x 1.5 metric DIN tube connection at size L12. So if your equipment port is male BSPP and your tube line terminates in a female metric DIN fitting, this adapter connects them straight through. No reducers or extra pieces needed for that combination.

Answer by: Customer Support on May 9, 2025, 1:06 PM

Will this fitting hold up if I'm using it with hydraulic fluid? Don't want no leaks!

Question by: Bobby A on May 4, 2025, 11:07 AM

This fitting is manufactured from steel, which is compatible with most hydraulic fluids when properly installed.

Answer by: Customer Support on May 6, 2025, 8:04 AM
