Male Bspp X F. Metric Swivel

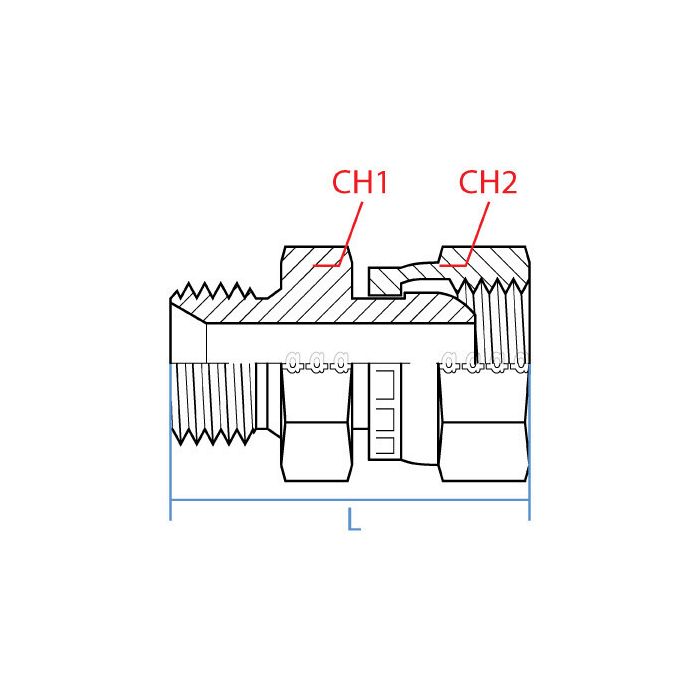

CH1 Width 22mm	CH2 Width 24mm	L Length 39.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-06-L12-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a BSPP male port to a metric DIN tube fitting, is this the right adapter?

Question by: Troy W on Oct 28, 2025, 8:24 AM

For tying those two standards together, this adapter is made exactly for a G 3/8 - 19 BSPP male on one end and an M18 x 1.5 female metric DIN tube swivel on the other.

Answer by: Customer Support on Oct 30, 2025, 6:14 AM
