Male Bspp X F. Metric Swivel 9019-06-L10-16

Specifications

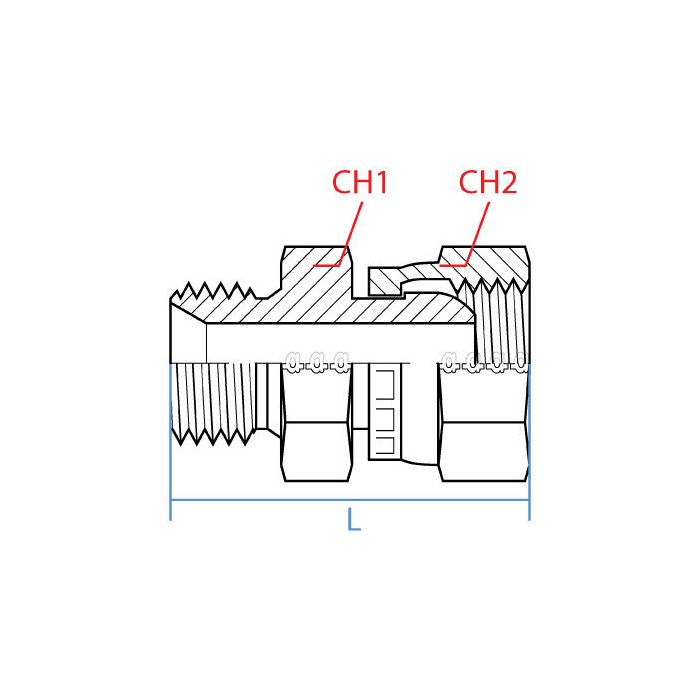

CH1 Width 22mm	CH2 Width 22mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-06-L10-16	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a G 3/8-19 port to an M16 x 1.5 metric tube nut, is that what this fitting is for?

Question by: Carl W on Oct 30, 2025, 6:45 PM

Built for mixed thread setups, it transitions from a G 3/8-19 male BSPP on one end to an M16 x 1.5 female DIN tube swivel on the other, and the swivel side is sized for L10 metric tubing.

Answer by: Customer Support on Nov 1, 2025, 11:50 AM

Got a G 3/8-19 BSPP port on my hydraulic block and need to tie in some L10 metric tubing, this fitting handle that transition?

Question by: Floyd T on Jan 11, 2026, 8:49 AM

That's what this one's built for. One end is a G 3/8-19 male BSPP thread, and the other is a female DIN tube swivel sized for L10 metric tubing. The swivel end gives you a little flexibility during assembly, which helps a lot when you're trying to get tube alignment right without fighting the fitting. Steel construction, straight body, so it drops right into an inline run without needing any angled adapter between them.

Answer by: Customer Support on Jan 13, 2026, 6:52 AM
