Male Bspp X F. Metric Swivel

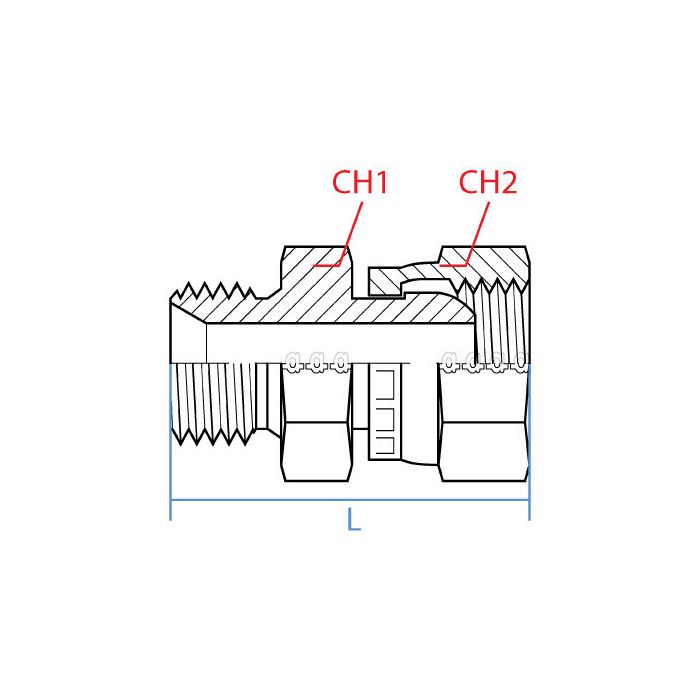

CH1 Width 19mm	CH2 Width 22mm	L Length 37.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-04-L10-16	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work to connect a BSPP thread to a metric DIN tube thread?

Question by: Tommy H on Apr 18, 2025, 3:32 PM

Yes, that's exactly what this Adaptall fitting is designed for. It has a male BSPP thread on one side and a female metric DIN tube thread on the other, so it's perfect for connecting those different thread types.

Answer by: Customer Support on Apr 19, 2025, 6:09 PM

trying to hook a G 1/4-19 male line to an M16 x 1.5 port, is this the right swivel for that?

Question by: Hugh B on Nov 15, 2025, 7:38 AM

For that mix of threads, it matches up. One side is a male BSPP G 1/4-19, and the other side is a female metric DIN tube thread M16 x 1.5, so it is meant to bridge those two standards in one straight swivel fitting.

Answer by: Customer Support on Nov 17, 2025, 6:37 AM
