Male Bspp X F. Metric Swivel 9019-04-L08-14

Specifications

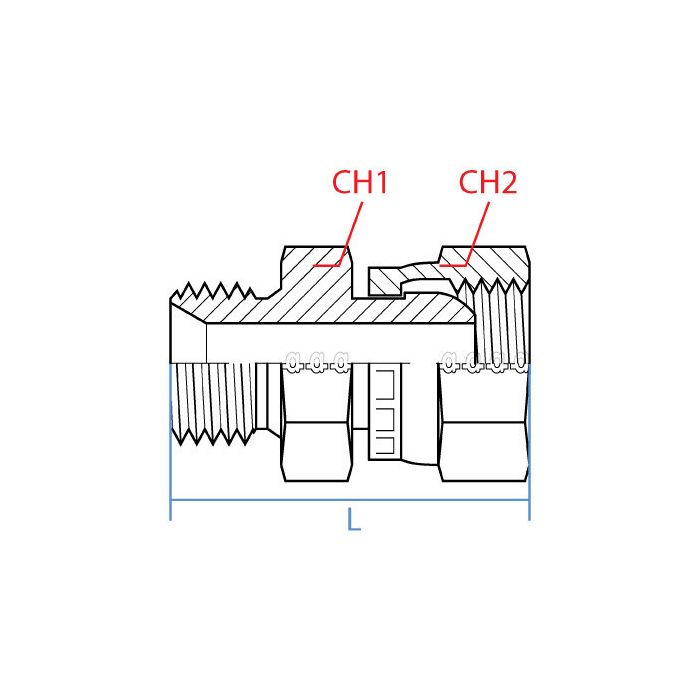

CH1 Width 19mm	CH2 Width 19mm	L Length 36.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-04-L08-14	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work if I'm connecting a BSPP thread to a metric DIN tube?

Question by: Dwayne R on Nov 12, 2025, 10:29 AM

This straight adapter is made specifically for connecting a male BSPP thread to a female metric DIN tube. It's got a G 1/4 - 19 BSPP male end and an M14 X 1.5 female DIN tube end.

Answer by: Customer Support on Nov 14, 2025, 10:12 AM

trying to match up fittings here, what thread sizes are on each end of this swivel?

Question by: Tommy T on Feb 23, 2026, 1:44 PM

On the BSPP side you get a male G 1/4 - 19 with a 1/4 inch size. The other end is a female metric swivel with an M14 x 1.5 callout, listed as DIN tube side 2 size L08.

Answer by: Customer Support on Feb 24, 2026, 3:43 PM

fitting's got a G 1/4 BSPP male end on one side -- what size is the metric swivel end on the other?

Question by: Hubert P on Apr 6, 2026, 3:06 PM

The female metric side uses an M14 x 1.5 thread, which corresponds to the L08 DIN tube size. So you've got a 1/4 inch BSPP male on one end connecting over to a female metric swivel on the other. Straight body, steel construction, 36.2mm overall length. Pretty common pairing when you're bridging British and metric hydraulic fittings on the same circuit.

Answer by: Customer Support on Apr 8, 2026, 6:59 AM
