Male Metric X Female Bspp

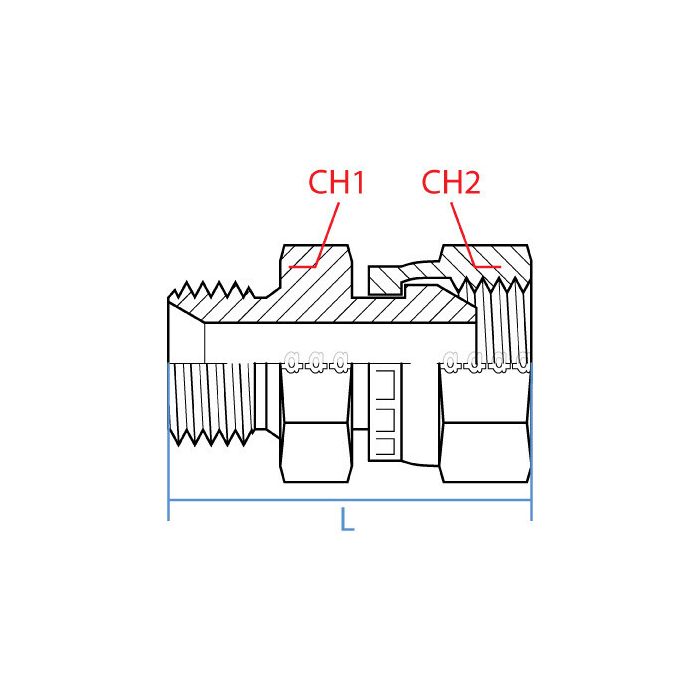

CH1 Width 24mm	CH2 Width 27mm	L Length 41.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Metric	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9018-18-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line coming off a European-built press with an M18 x 1.5 male fitting on it, what's on the other end of this adapter so I know if it'll work with my existing setup?

Question by: Brett W on Nov 13, 2025, 12:26 PM

The opposite end carries a G 1/2-14 female BSPP connection. So if your existing line or component has a male BSPP half-inch fitting, this adapter bridges straight across from that Metric M18 x 1.5 male side to it. Both thread types and sizes are fixed, there's no adjustability on either end, so just confirm your mating hardware matches those two callouts before ordering.

Answer by: Customer Support on Nov 14, 2025, 5:43 PM

trying to hook a metric line into a BSPP port, is this the right adapter?

Question by: Eddie R on May 1, 2025, 6:26 PM

It bridges those two thread standards in a straight steel fitting, with an M18 x 1.5 male on one end and a G 1/2 - 14 female BSPP on the other.

Answer by: Customer Support on May 2, 2025, 8:45 PM
