Male Bspp X Female Bspp Swivel 9015-20-24

Specifications

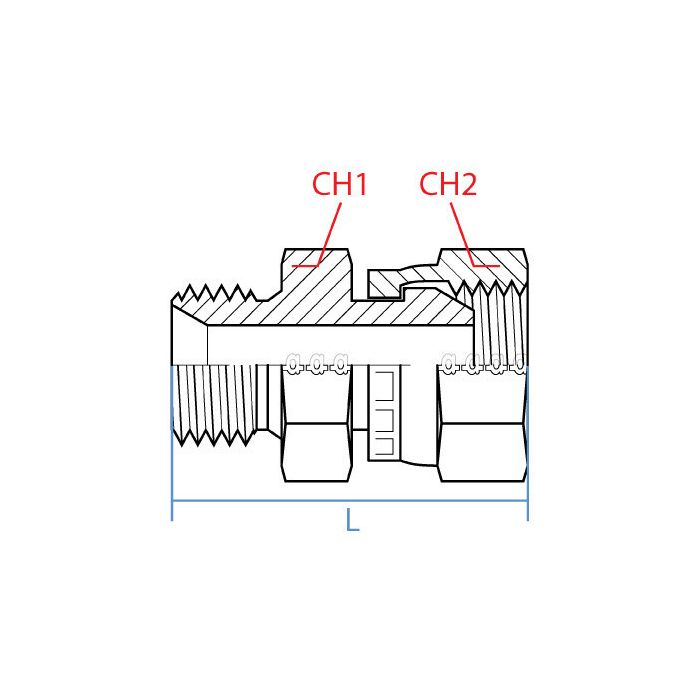

CH1 Width 50mm	CH2 Width 60mm	L Length 66mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/2 - 11	Side 2 Gender F	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-20-24	Product Weight 1.75 lbs

Product Questions & Answers 3

Product Questions & Answers

got a straight run where one side is G 1-1/4 - 11 male and the other side needs to be a G 1-1/2 - 11 female swivel, is that what this adapter is?

Question by: Tony W on Nov 20, 2025, 6:25 AM

For connecting those two BSPP sizes in a straight adapter, it matches what you described: Side 1 is a male BSPP G 1-1/4 - 11 and Side 2 is a female BSPP swivel G 1-1/2 - 11.

Answer by: Customer Support on Nov 22, 2025, 6:17 AM

What size threads are on each end of this fitting, and are both ends BSPP?

Question by: Dwight G on Sep 12, 2025, 5:08 PM

Both ends are BSPP, yes. The male end is 1-1/4" BSPP with an 11 threads per inch pitch, and the female swivel end is 1-1/2" BSPP, also at 11 TPI. So you've got two different sizes here, which matters when you're stepping up between components in a hydraulic line.

Answer by: Customer Support on Sep 14, 2025, 6:55 AM

What's the overall length of this swivel? Just trying to make sure it'll fit in the space I have.

Question by: Janice P on Jul 27, 2025, 5:41 PM

The overall length of this Adaptall fitting is 66mm.

Answer by: Customer Support on Jul 29, 2025, 6:57 AM
