Male Bspp X Female Bspp Swivel 9015-20-20

Specifications

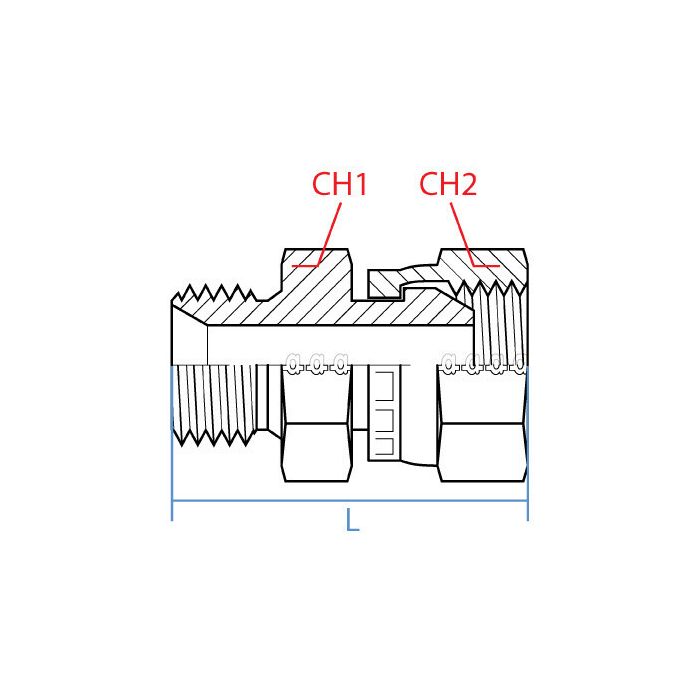

CH1 Width 50mm	CH2 Width 50mm	L Length 65mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-20-20	Product Weight 1.02 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends are the same thread size on this thing, right? just making sure before i order it for a retrofit job where i need to keep everything 1-1/4 BSPP throughout the line

Question by: Scott C on Jun 22, 2025, 9:59 PM

Correct on both ends. The male side and the female side are both G 1-1/4 - 11 BSPP, so you're keeping the same thread spec all the way through. It's a same-size inline adapter, not a reducer, which makes it a clean fit for exactly the kind of job you're describing.

Answer by: Customer Support on Jun 24, 2025, 3:51 PM

Putting together a line with two G 1-1/4 - 11 ports, is this the piece that lets one side spin so I’m not fighting hose twist?

Question by: Dwight T on Jan 30, 2026, 5:12 PM

With the female BSPP end built as a swivel, it can rotate freely while you tighten and align things. That gives you an inline G 1-1/4 - 11 male to G 1-1/4 - 11 female connection and helps cut down on twist and strain during assembly.

Answer by: Customer Support on Feb 1, 2026, 3:34 PM

What kinda steel is this made from? Just wanna make sure it's gonna hold up.

Question by: Kirk G on Jul 23, 2025, 9:48 PM

Constructed from steel, this swivel fitting is made for durability in hydraulic applications.

Answer by: Customer Support on Jul 25, 2025, 6:44 PM
