Male Bspp X Female Bspp Swivel

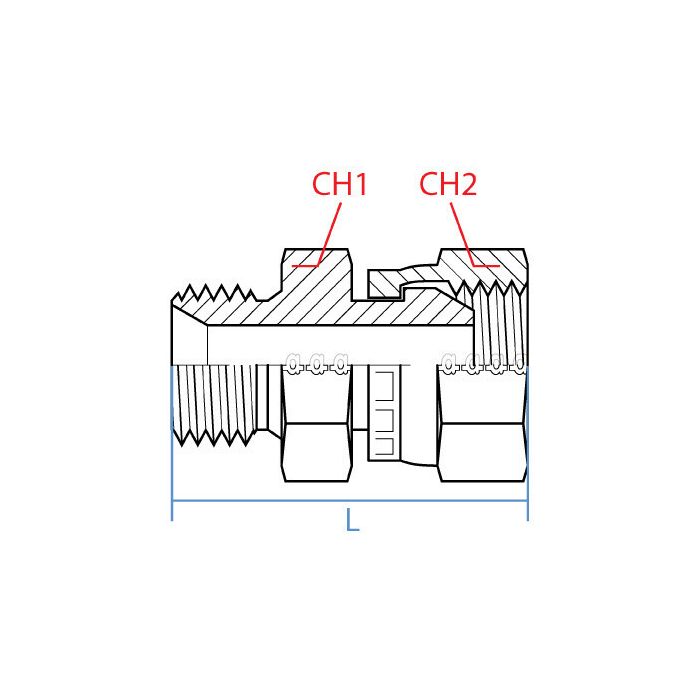

CH1 Width 50mm	CH2 Width 41mm	L Length 64.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-20-16	Product Weight 0.80 lbs

Product Questions & Answers 2

Product Questions & Answers

i’ve got a G 1-1/4 - 11 male on one side and need to hook into a G 1 - 11 female port, is that what this swivel adapter is set up for

Question by: Kurt W on Jul 19, 2025, 7:54 PM

It is a straight Male BSPP to Female BSPP swivel with a G 1-1/4 - 11 male end and a G 1 - 11 female end, so it matches those thread callouts and sizes.

Answer by: Customer Support on Jul 21, 2025, 6:24 AM

What's the thread size difference between the two ends on this swivel, does the male side really run bigger than the female?

Question by: Kurt C on Jun 15, 2025, 7:12 PM

the two ends are different sizes. The male end carries a G 1-1/4 - 11 thread, and the female end steps down to G 1 - 11. So if you're trying to tie together a 1-1/4 inch BSPP port on one component to a 1 inch BSPP female fitting on the other side, this is the piece that bridges that gap. Both sides are BSPP, just different sizes.

Answer by: Customer Support on Jun 17, 2025, 6:34 PM
