Male Bspp X Female Bspp Swivel

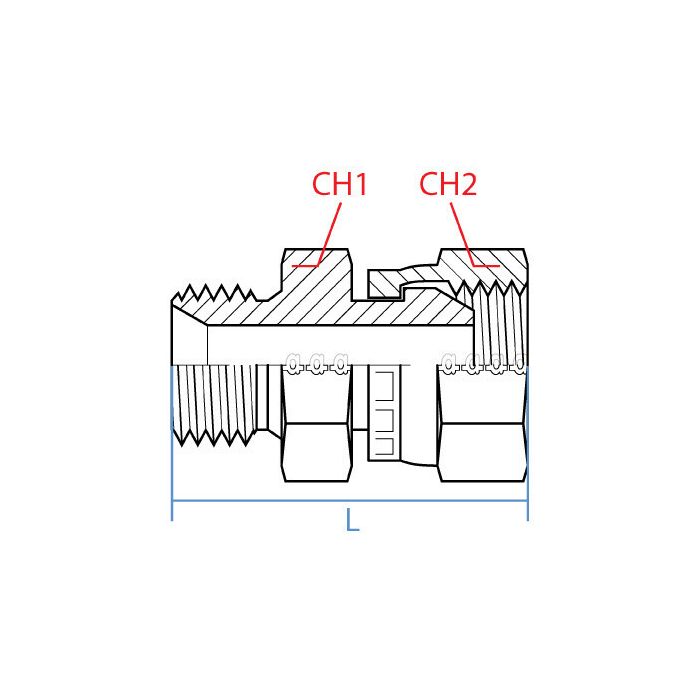

CH1 Width 50mm	CH2 Width 50mm	L Length 59mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-16-20	Product Weight 0.95 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a 1" male BSPP line I need to step up to a 1-1/4" female BSPP connection. This fitting do that?

Question by: Rick A on Dec 3, 2025, 6:33 PM

That's what this one's for. The male end is G 1-11 at 1 inch, and the female end is G 1-1/4-11 at 1-1/4 inch, so it bridges that size difference in a straight run. Both wrench flats come in at 50mm, and the overall length is 59mm. Steel construction throughout.

Answer by: Customer Support on Dec 5, 2025, 12:40 PM

Will this fitting work to connect a 1" male BSPP to a 1-1/4" female BSPP?

Question by: Travis H on Aug 15, 2025, 7:55 PM

That's precisely what this fitting is for. It adapts a 1" male BSPP (G 1 - 11) to a 1-1/4" female BSPP (G 1-1/4 - 11).

Answer by: Customer Support on Aug 17, 2025, 6:11 AM
