Male Bspp X Female Bspp Swivel

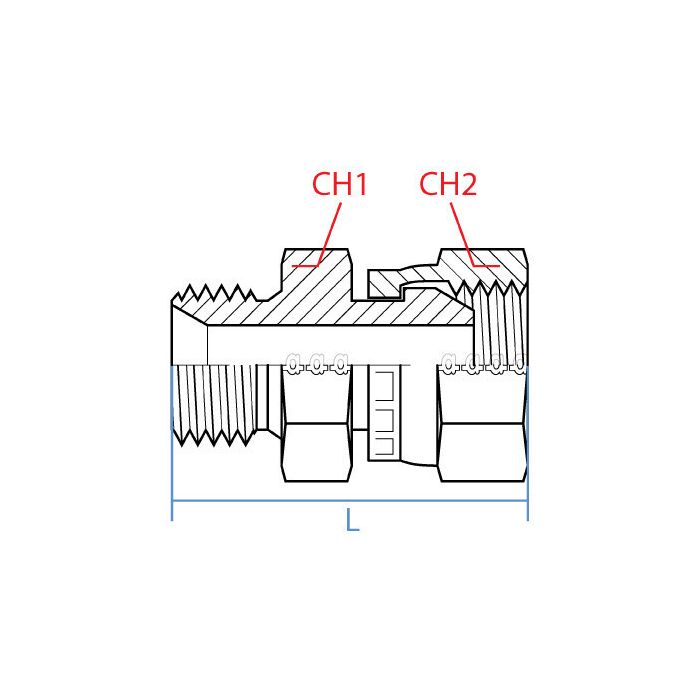

CH1 Width 41mm	CH2 Width 27mm	L Length 53mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-16-08	Product Weight 0.50 lbs

Product Questions & Answers 2

Product Questions & Answers

need a swivel that goes from a 1in BSPP male to a 1/2in BSPP female, is that what this one is?

Question by: Rex S on Sep 30, 2025, 3:23 PM

It is a straight steel swivel with a G 1 - 11 male end on one side and a G 1/2 - 14 female end on the other, so it matches a 1 inch BSPP male to a 1/2 inch BSPP female connection.

Answer by: Customer Support on Oct 2, 2025, 8:32 AM

Got a 1-inch male BSPP line feeding into a 1/2-inch female BSPP port, this fitting handle that size difference?

Question by: Daryl G on Oct 17, 2025, 6:23 AM

Yeah, that's exactly what this one's built for. The male end is G 1 - 11, which is your 1-inch BSPP thread, and the female end is G 1/2 - 14, the half-inch side. So it steps down between those two sizes while also giving you swivel movement to help with alignment during hookup. Steel construction, straight configuration, 53mm overall length. Solid fit for what you're describing.

Answer by: Customer Support on Oct 19, 2025, 6:31 AM
