Male Bspp X Female Bspp Swivel

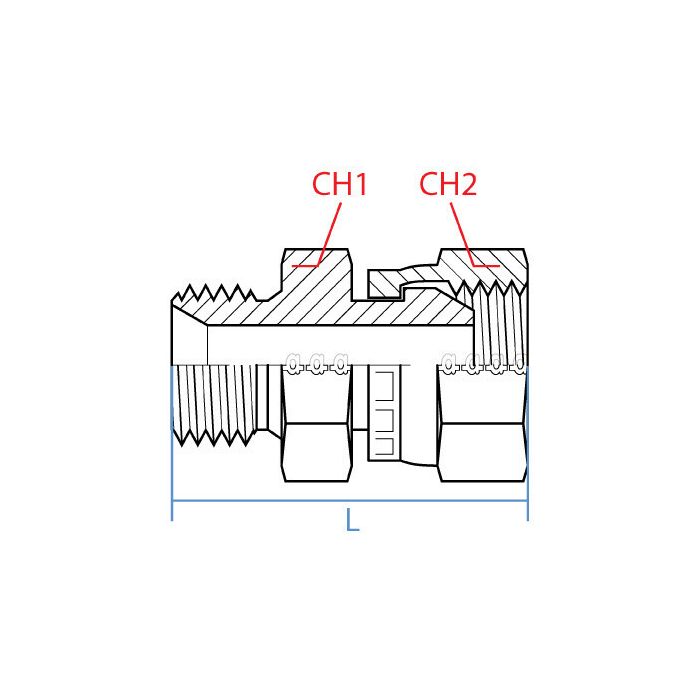

CH1 Width 42mm	CH2 Width 50mm	L Length 58mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-12-20	Product Weight 0.92 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for this swivel fitting?

Question by: Tony Y on Sep 17, 2025, 7:51 AM

This Adaptall swivel uses a 42mm wrench on the male side and a 50mm wrench on the female side.

Answer by: Customer Support on Sep 18, 2025, 6:23 PM

got a 1-1/4 female BSPP port on a manifold block and need to step down to a 3/4 male BSPP line -- would this fitting handle that transition in one shot?

Question by: Roger P on Mar 11, 2026, 11:26 AM

That's exactly the job this piece is built for. The female end is G 1-1/4-11 BSPP and the male end is G 3/4-14 BSPP, so you're getting a direct size reduction between those two specific thread sizes without needing a separate reducer in the middle. Both sides are parallel pipe thread, so the sealing method stays consistent across the connection. Steel construction keeps it solid under the mechanical load you'd expect from a hydraulic line hookup.

Answer by: Customer Support on Mar 13, 2026, 6:15 AM
