Male Bspp X Female Bspp Swivel 9015-12-12

Specifications

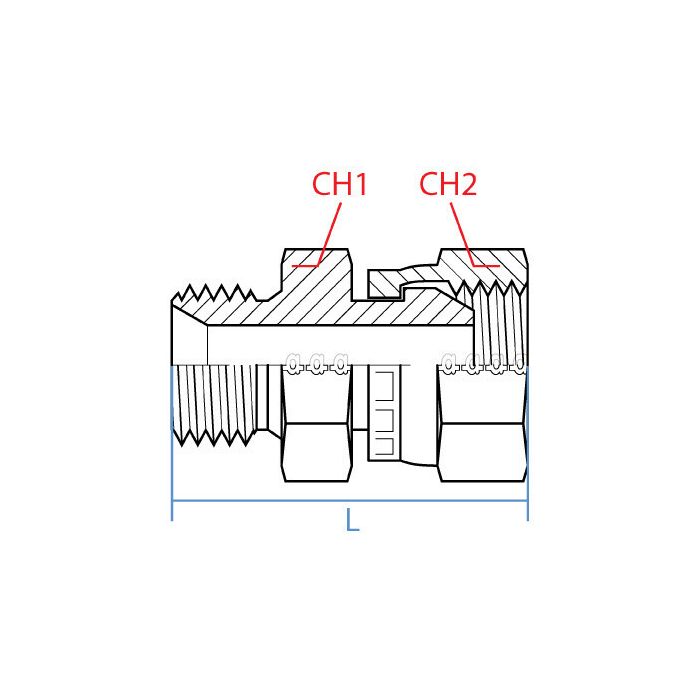

CH1 Width 32mm	CH2 Width 32mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-12-12	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this fitting'll hold up if it's runnin' steady all day?

Question by: Warren A on Mar 20, 2026, 1:11 PM

Crafted from high-quality steel, this adapter is designed for durability and robust performance in demanding industrial applications. It should hold up just fine running steady all day.

Answer by: Customer Support on Mar 22, 2026, 12:57 PM

trying to swap out an old straight swivel, is this one 3/4 BSPP on both ends?

Question by: Phil D on Sep 30, 2025, 8:14 PM

Both sides are G 3/4 - 14 BSPP threads, with a 3/4 inch male on one end and a 3/4 inch female swivel on the other.

Answer by: Customer Support on Oct 2, 2025, 7:38 PM

both ends are 3/4 BSPP on this one, right? just want to make sure before I go swapping out fittings on the line

Question by: Roger W on May 28, 2025, 1:27 PM

Correct on both counts. The male end runs G 3/4 - 14 and the female end matches that same thread spec, so you're working with identical 3/4 inch BSPP sizing across both sides. That makes it straightforward to drop into a line where you need a swivel connection without changing thread sizes anywhere in the assembly.

Answer by: Customer Support on May 29, 2025, 2:24 PM
