Male Bspp X Female Bspp Swivel

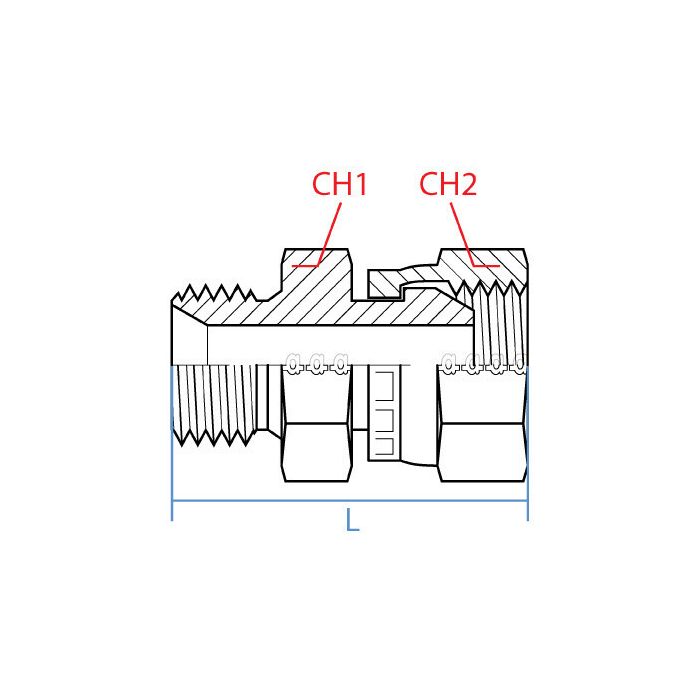

CH1 Width 32mm	CH2 Width 30mm	L Length 53mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 5/8 - 14	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-12-10	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

got a line running G 3/4 male on one end and need to step down to a G 5/8 female connection with some rotation capability, this swivel do that?

Question by: Larry K on Jul 31, 2025, 4:18 PM

That's what this fitting handles. The male side is G 3/4 - 14 BSPP and the female side is G 5/8 - 14 BSPP, so you're getting a thread reduction along with the swivel function in one piece. Both sides are straight, so no angled offset to worry about fitting into tight spots. Steel construction throughout, and at 53mm long with channel widths of 32mm and 30mm, it's a pretty compact unit for what it does.

Answer by: Customer Support on Aug 2, 2025, 6:48 AM

What kind of steel is this made from? I just need to know if it'll hold up.

Question by: Bobby R on Oct 25, 2025, 6:16 AM

This connector is made from steel, so it's designed to be durable in demanding industrial environments.

Answer by: Customer Support on Oct 26, 2025, 4:48 PM
