Male Bspp X Female Bspp Swivel

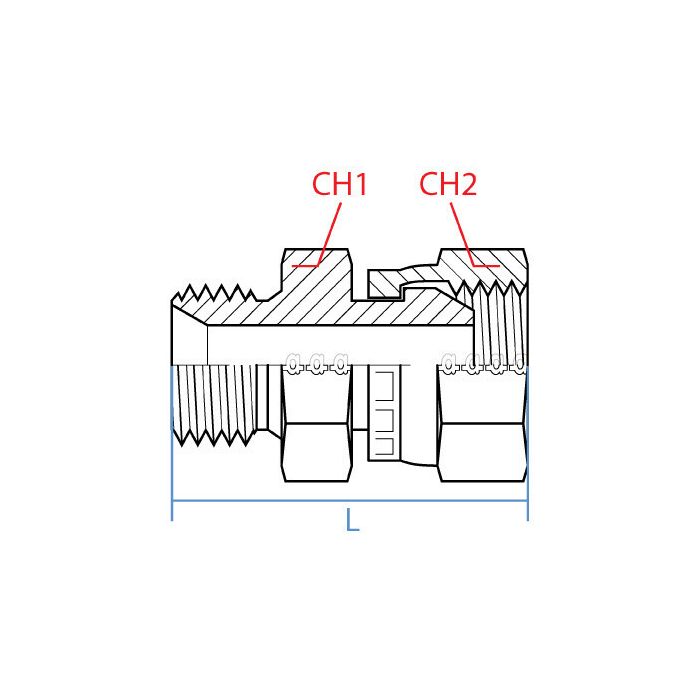

CH1 Width 32mm	CH2 Width 27mm	L Length 48mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-12-08	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a G 3/4 - 14 bspP male side to a G 1/2 - 14 bspp female port, is that what this swivel is for?

Question by: Troy B on Oct 6, 2025, 6:10 PM

For connecting those two BSPP thread sizes in a straight steel fitting, it matches up as male G 3/4 - 14 on one end and female G 1/2 - 14 BSPP swivel on the other.

Answer by: Customer Support on Oct 8, 2025, 10:10 AM

Got a 3/4 male BSPP line coming off my pump and need to step it down to a 1/2 female BSPP port on the valve block. this fitting do that?

Question by: Dustin W on Sep 17, 2025, 8:41 AM

That's what this one's built for. One end is a 3/4 inch male BSPP (G 3/4-14) and the other is a 1/2 inch female BSPP (G 1/2-14), so it bridges that size difference in a straight-line connection. Steel construction, 48mm overall length, and it comes from Adaptall under part number 9015-12-08.

Answer by: Customer Support on Sep 19, 2025, 7:11 AM
