Male Bspp X Female Bspp Swivel 9015-10-08

Specifications

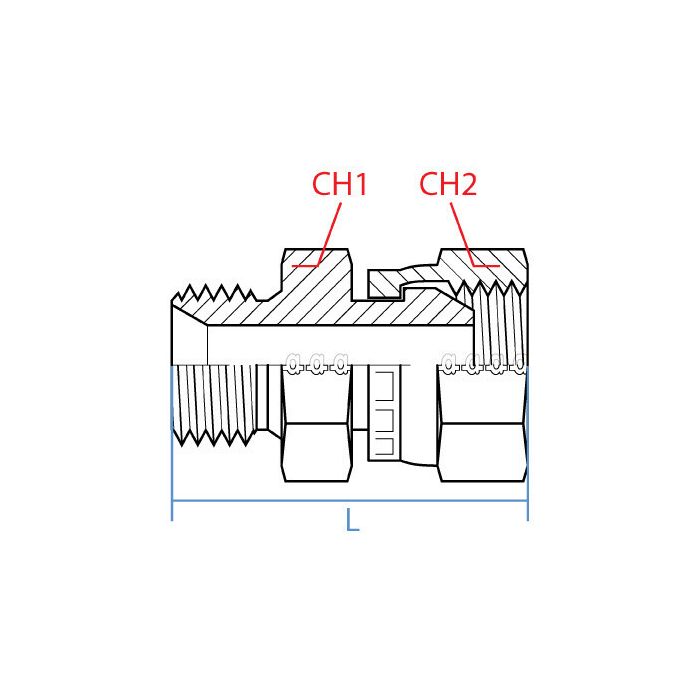

CH1 Width 27mm	CH2 Width 27mm	L Length 45mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-10-08	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's 45mm long total, that gonna be enough clearance to get a wrench on both ends without fighting it?

Question by: Ronnie T on Apr 22, 2025, 8:08 PM

Both wrench flats are 27mm, same size on each end, so you can use the same wrench throughout without swapping. At 45mm overall length, there's enough separation between the two engagement points that a standard open-end or combination wrench sits comfortably on either flat. Tight quarters can still be a challenge depending on the surrounding hardware, but the geometry here doesn't create any unusual access problems on its own.

Answer by: Customer Support on Apr 24, 2025, 4:44 PM

trying to swap a fitting out, are the ends on this one G 5/8-14 male and G 1/2-14 female swivel?

Question by: Ronnie R on Jun 20, 2025, 2:54 PM

On the port side, it’s a BSPP male G 5/8 - 14 on one end and a BSPP female swivel G 1/2 - 14 on the other.

Answer by: Customer Support on Jun 21, 2025, 5:15 PM

Will this fitting work to connect a 5/8" BSPP male to a 1/2" BSPP female?

Question by: Clint W on Oct 9, 2025, 3:18 PM

Yes it will. This straight fitting is designed to connect those exact sizes and thread types.

Answer by: Customer Support on Oct 11, 2025, 12:17 PM
