Male Bspp X Female Bspp Swivel

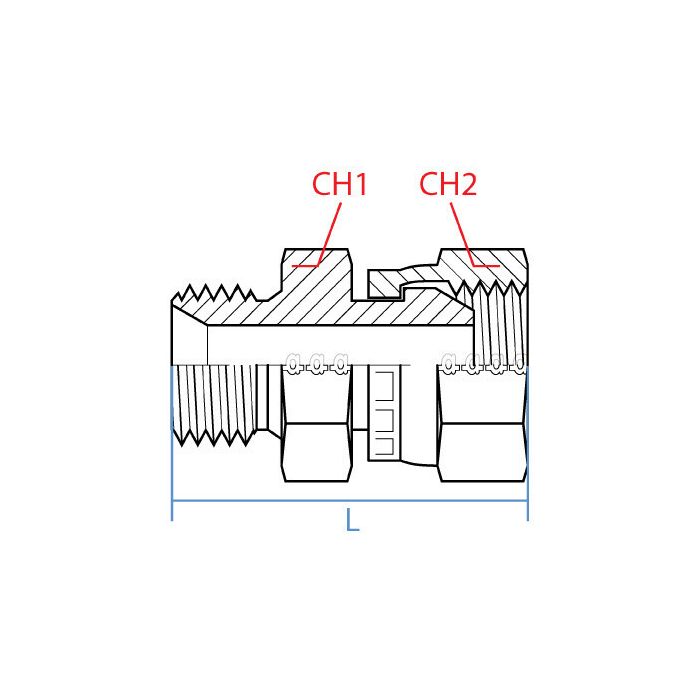

CH1 Width 30mm	CH2 Width 32mm	L Length 48mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 5/8 - 14	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-08-10	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

What size threads does this thing have?

Question by: Warren M on Mar 11, 2026, 9:44 PM

This fitting connects a G 1/2 - 14 male thread to a G 5/8 - 14 female swivel thread, both BSPP.

Answer by: Customer Support on Mar 13, 2026, 8:14 AM

fitting's got a male half-inch BSPP on one end and a female 5/8 BSPP on the other, that right? trying to step up between two different size ports without adding extra adapters in the line

Question by: Steve T on Mar 7, 2026, 7:40 AM

Correct on both counts. One end carries a G 1/2 - 14 male BSPP thread and the other is a G 5/8 - 14 female BSPP swivel. That size difference is built into the fitting itself, so you can bridge those two port sizes in a single piece without stacking adapters. The straight body keeps everything in line, which helps when your routing doesn't have room for angles or offsets.

Answer by: Customer Support on Mar 9, 2026, 8:31 AM
