Male Bspp X Female Bspp Swivel 9015-08-04

Specifications

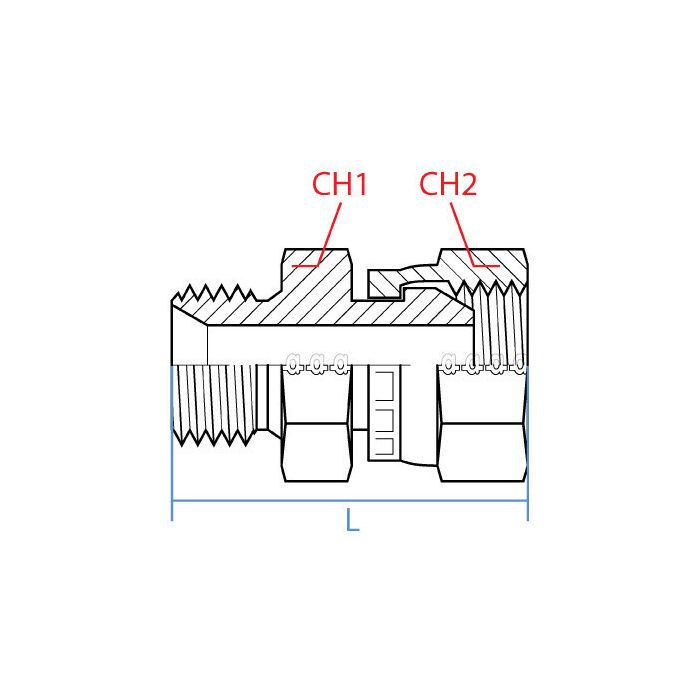

CH1 Width 27mm	CH2 Width 19mm	L Length 39.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-08-04	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap in a swivel between two BSPP lines, what thread sizes are on each end of this one?

Question by: Norm G on Jun 10, 2025, 1:48 PM

On the male side you get a G 1/2 - 14 BSPP connection, and the swivel female side is G 1/4 - 19 BSPP.

Answer by: Customer Support on Jun 12, 2025, 6:07 AM

Will this swivel work for connecting a 1/2" BSPP male fitting to a 1/4" BSPP female fitting? Just want to make sure I'm understanding the description right.

Question by: Janice R on Sep 6, 2025, 7:29 PM

Yes, that's exactly what it's for. This swivel connects a G 1/2 - 14 male BSPP to a G 1/4 - 19 female BSPP.

Answer by: Customer Support on Sep 8, 2025, 2:33 PM

Got a hydraulic line that keeps wanting to rotate on me during operation, would this swivel fitting handle that kind of movement without loosening up the connection?

Question by: Dwayne R on Jan 25, 2026, 9:24 AM

Swivel fittings like this one are built specifically for that situation. The rotating action happens at the fitting itself, so the line can move without putting torsional stress on the connection points. Both ends stay sealed and secure while the swivel joint absorbs the rotation, which keeps everything tight even when the line shifts during operation.

Answer by: Customer Support on Jan 27, 2026, 7:59 AM
