Male Bspp X Female Bspp Swivel

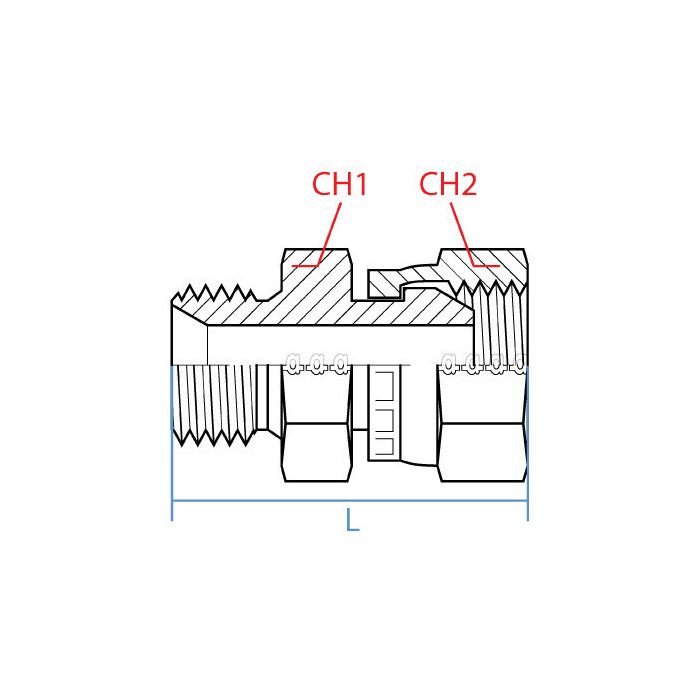

CH1 Width 22mm	CH2 Width 27mm	L Length 41mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-06-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

I need a swivel fitting to connect a 3/8" BSPP male to a 1/2" BSPP female. Will this work?

Question by: Judy S on Feb 13, 2026, 4:38 PM

Yes sir, this straight swivel is exactly that. It's got a 3/8" BSPP male on one side and a 1/2" BSPP female on the other.

Answer by: Customer Support on Feb 15, 2026, 6:42 AM

what's the thread size difference between the two ends on this fitting, is one end bigger than the other?

Question by: Pete B on Jun 19, 2025, 11:03 AM

Yeah, the two sides are different sizes. Side one is a 3/8" male BSPP thread with a G 3/8-19 callout, and side two is a 1/2" female BSPP thread with a G 1/2-14 callout. So you're stepping up from a 3/8 male connection to a 1/2 female connection. The overall length runs 41mm, and the wrench widths are 22mm on the smaller end and 27mm on the larger end.

Answer by: Customer Support on Jun 20, 2025, 4:15 PM
