Male Bspp X Female Bspp Swivel 9015-06-04

Specifications

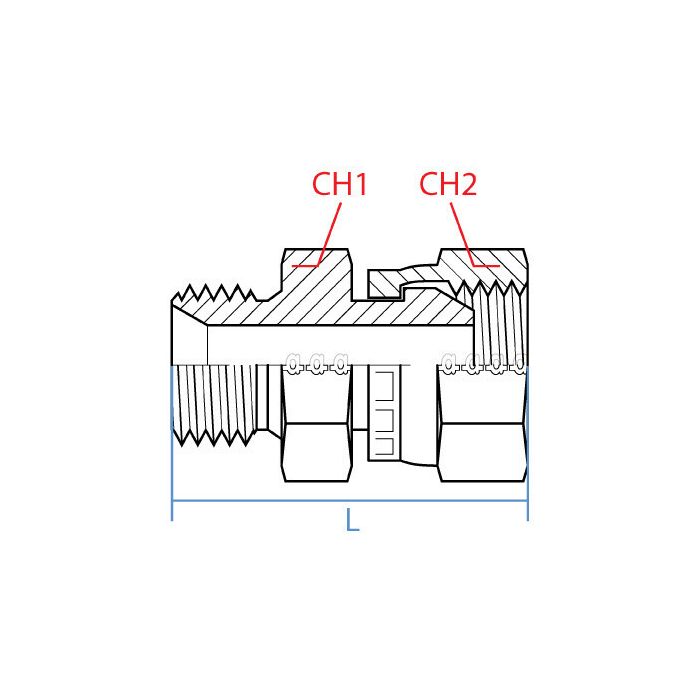

CH1 Width 22mm	CH2 Width 19mm	L Length 36.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-06-04	Product Weight 0.14 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work with standard BSPP threads?

Question by: Dustin R on Feb 25, 2026, 9:42 PM

It sure will. This swivel fitting has a G 3/8 - 19 male thread on one side and a G 1/4 - 19 female thread on the other, both BSPP.

Answer by: Customer Support on Feb 27, 2026, 11:34 AM

got a hose end that’s G 3/8 - 19 BSPP male. will this swivel onto it and step down to a G 1/4 - 19 female?

Question by: Randy B on Oct 30, 2025, 7:40 AM

The threads on this adapter are G 3/8 - 19 BSPP male on one side and G 1/4 - 19 BSPP female on the other, in a straight swivel style. If your mating parts are those same BSPP thread callouts, it matches that connection and gives you the 3/8 to 1/4 changeover.

Answer by: Customer Support on Nov 1, 2025, 6:05 AM

Got a line running G 3/8 male on one end and need to tie into a G 1/4 female port, this swivel handle that kind of size difference between the two sides?

Question by: Dwight H on Apr 25, 2025, 1:52 PM

That's what this fitting is built for. One side is a G 3/8 - 19 male thread and the other is a G 1/4 - 19 female, so it bridges that 3/8 to 1/4 size step-down while also giving you swivel movement. Both sides are BSPP thread type, so as long as your ports and fittings match that thread form, you're in good shape.

Answer by: Customer Support on Apr 27, 2025, 12:46 PM
