Male Bspp X Female Bspp Swivel

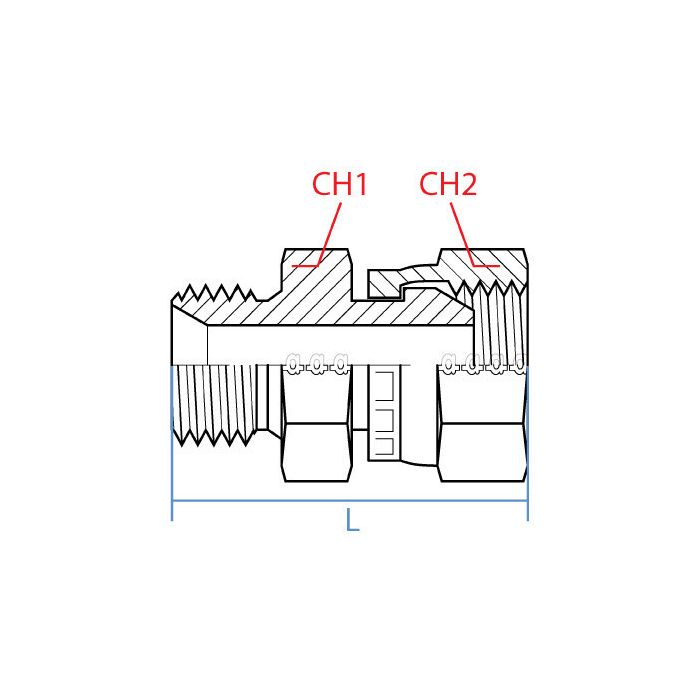

CH1 Width 19mm	CH2 Width 14mm	L Length 32mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-04-02	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the size difference between the two ends on this fitting? One side looks bigger than the other in the picture.

Question by: Troy C on Feb 6, 2026, 7:39 AM

You're reading that right. The male end is a 1/4" BSPP with a G 1/4 - 19 thread callout, and the female swivel end is a smaller 1/8" BSPP with a G 1/8 - 28 callout. So yeah, the two sides are different sizes, which makes this a reducing adapter. Useful when you need to step down from a 1/4" male port connection to a 1/8" female swivel connection in the same inline run.

Answer by: Customer Support on Feb 8, 2026, 6:48 AM

i’ve got a hose end that’s G 1/8-28 female swivel. does this adapt it up to a G 1/4-19 male?

Question by: Ross F on Jul 29, 2025, 10:26 AM

Yes, it matches that setup. Side 2 is a female BSPP swivel with a G 1/8 - 28 callout and 1/8 inch size, and Side 1 is a male BSPP with a G 1/4 - 19 callout and 1/4 inch size.

Answer by: Customer Support on Jul 30, 2025, 11:22 AM
