Male Bspp X Female Bspp Swivel

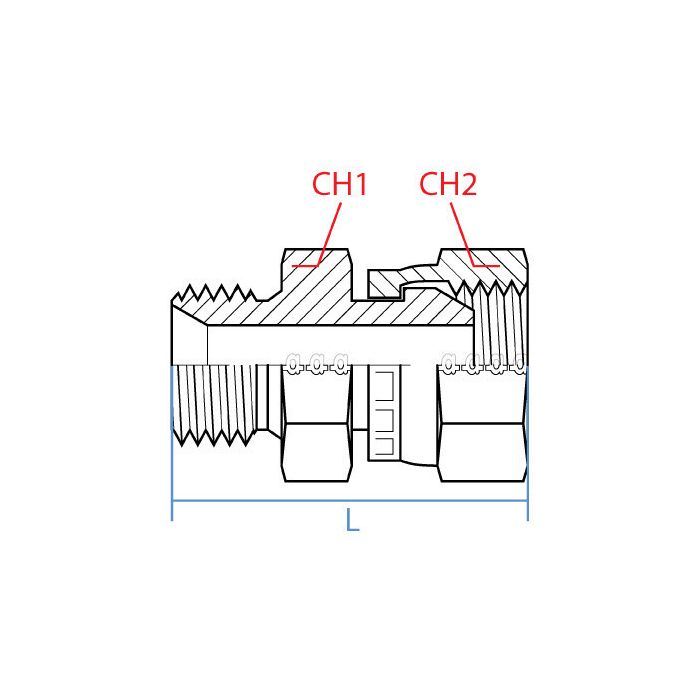

CH1 Width 14mm	CH2 Width 14mm	L Length 28.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-02-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that never wants to line up. does the female side on this fitting actually swivel while you tighten it?

Question by: Rusty K on May 23, 2025, 6:12 PM

With the swivel on the female BSPP end, you can tighten the connection without having to spin the hose or tube itself. That rotating female helps take the twist out of assembly and cuts down on stress in the line once it is in service.

Answer by: Customer Support on May 25, 2025, 6:10 AM

both ends are 1/8 BSPP on this thing, right? just want to make sure i ain't mixing up the sizes before i order

Question by: Rex H on Mar 2, 2026, 7:04 AM

Correct on both counts. Each side is G 1/8 - 28 BSPP, so the thread size and pitch match across the fitting. The male end goes into one port, and the rotating female end receives the mating connection on the other side. Same wrench flat size too, 14mm on each end, which keeps tooling simple during install.

Answer by: Customer Support on Mar 4, 2026, 7:00 AM
