Male Jic X Male Bspt

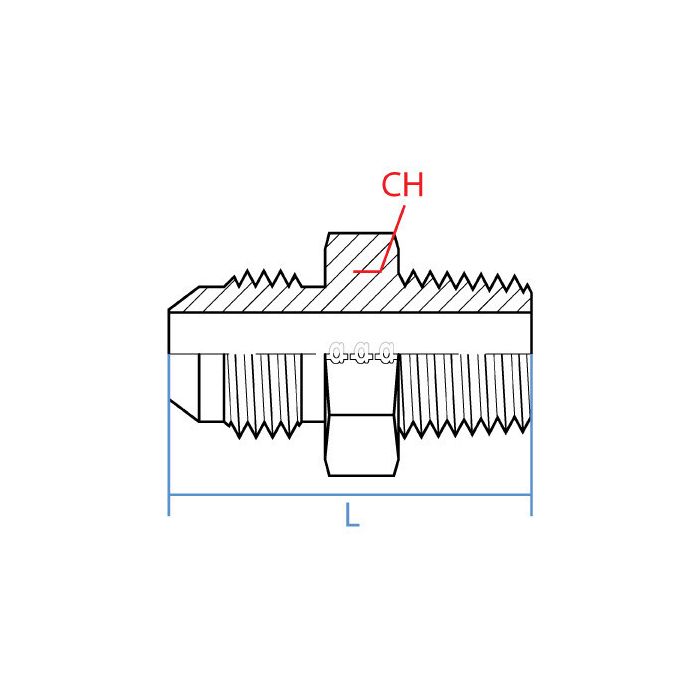

CH Width 51mm	L Length 73.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout R 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-24-24	Product Weight 0.75 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1-7/8-12 UN JIC male. will this adapter get me over to a 1-1/2 BSPT port?

Question by: Janet B on Mar 3, 2026, 9:16 AM

Yes, it bridges those exact thread callouts. Side 1 is a 1-1/2 inch male JIC with a 1-7/8 - 12 UN callout, and side 2 is a 1-1/2 inch male BSPT with an R 1-1/2 - 11 callout, in a straight steel fitting.

Answer by: Customer Support on Mar 5, 2026, 7:05 AM

Got a line running 1-1/2 inch JIC on one end and need to tie into a BSPT port on the other side, this the right piece for that?

Question by: Shane R on Mar 7, 2026, 8:35 AM

That's what this fitting handles. One end is 1-1/2 inch JIC male with a 1-7/8-12 UN thread, and the other is 1-1/2 inch BSPT male with an R 1-1/2-11 thread. Both sides are male, so you'd be threading into female ports or fittings on each end. Steel construction, straight configuration, no angling involved. If your port sizes and thread types match up, this one should drop right in.

Answer by: Customer Support on Mar 8, 2026, 9:13 AM
