Male Jic X Male Bspt 9011-16-20

Specifications

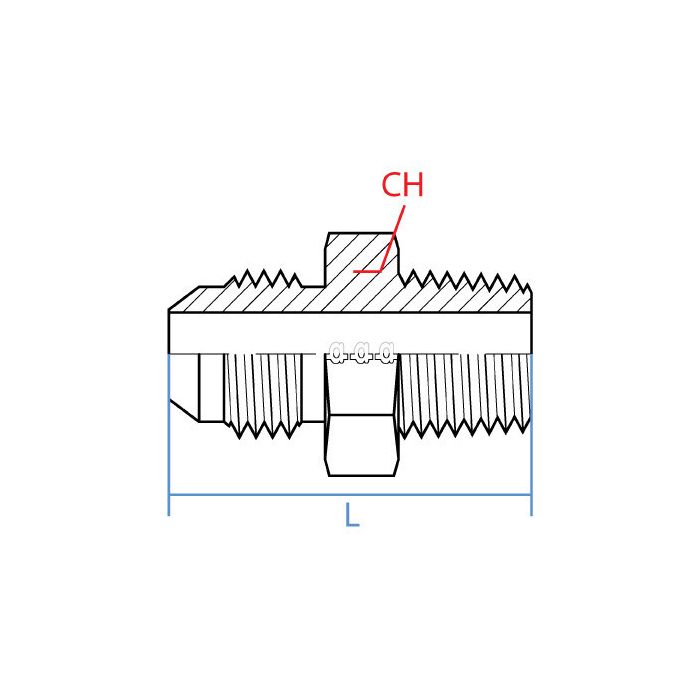

CH Width 44.5mm	L Length 64.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout R 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-16-20	Product Weight 0.70 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a JIC hose end to a BSPT port, is this the right kind of adapter?

Question by: Rhonda P on Apr 24, 2025, 2:31 PM

For that kind of mix-and-match connection, this adapter is set up with a male JIC on one end and a male BSPT on the other. The JIC side is 1-5/16 - 12 UN (1 inch size) and the BSPT side is R 1-1/4 - 11 (1-1/4 inch size), so it fits those specific thread callouts.

Answer by: Customer Support on Apr 26, 2025, 8:44 AM

Will this fitting hold up okay in a hydraulic setup that sees pretty consistent use?

Question by: Bobby W on Oct 20, 2025, 6:21 PM

Crafted from high-quality steel, this adapter is designed to offer exceptional durability and resistance to wear, making it suitable for demanding industrial environments where hydraulic systems are in constant use.

Answer by: Customer Support on Oct 22, 2025, 6:15 AM

Got a line running 1-inch JIC fittings on one end and the other side hooks into a BSPT port sized at 1-1/4 inch. This adapter gonna bridge that gap without me needing some kind of in-between piece?

Question by: Chad B on Nov 24, 2025, 6:46 PM

That's exactly what this fitting handles. One side is a 1-5/16-12 UN male JIC, which corresponds to a 1-inch JIC connection, and the other side is a male BSPT at R 1-1/4-11, which is your 1-1/4 inch British Standard Pipe Taper thread. Straight configuration, no reducer or extra coupler needed. It goes right between those two connection points as a single piece.

Answer by: Customer Support on Nov 26, 2025, 6:01 AM
