Male Jic X Male Bspt

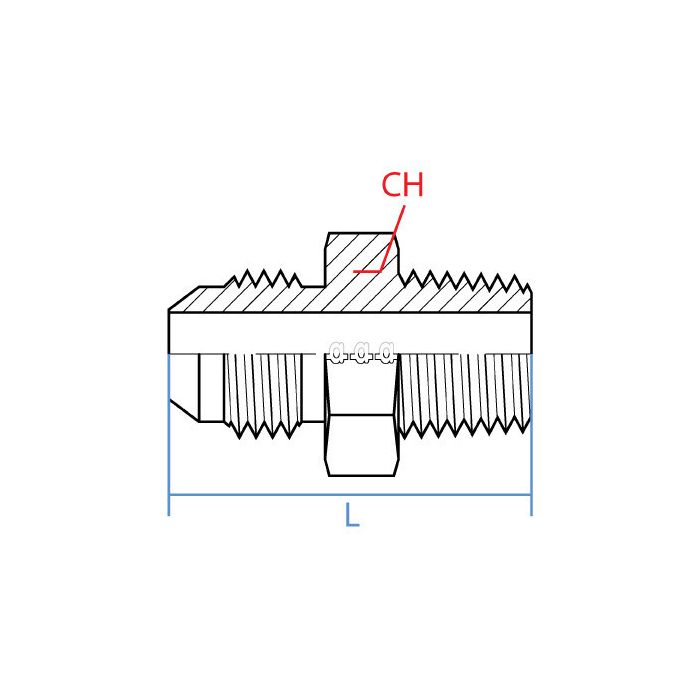

CH Width 35mm	L Length 62.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout R 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-12-16	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose with a 3/4 JIC male end, will this adapter match up to it?

Question by: Kurt W on Jul 18, 2025, 10:22 AM

The JIC side on this adapter is a 3/4 inch male with a 1-1/16 - 12 UN thread callout, so it matches hoses or ports that take that JIC size.

Answer by: Customer Support on Jul 19, 2025, 2:49 PM

Will this fitting hold up okay for hydraulic oil?

Question by: Harvey M on Jun 30, 2025, 9:26 AM

This Adaptall fitting is made of steel, so it's suitable for use with hydraulic oil in connecting hydraulic lines.

Answer by: Customer Support on Jul 1, 2025, 3:29 PM

What thread sizes are we actually dealing with on each end of this fitting?

Question by: Larry B on Sep 4, 2025, 8:11 PM

One end runs a 3/4" JIC male thread, which uses a 1-1/16 - 12 UN callout. The other end is a 1" BSPT male, callout R 1 - 11. So you're looking at two different thread standards on a straight body, no bends or offsets involved.

Answer by: Customer Support on Sep 6, 2025, 6:50 PM
