Male Jic X Male Bspt

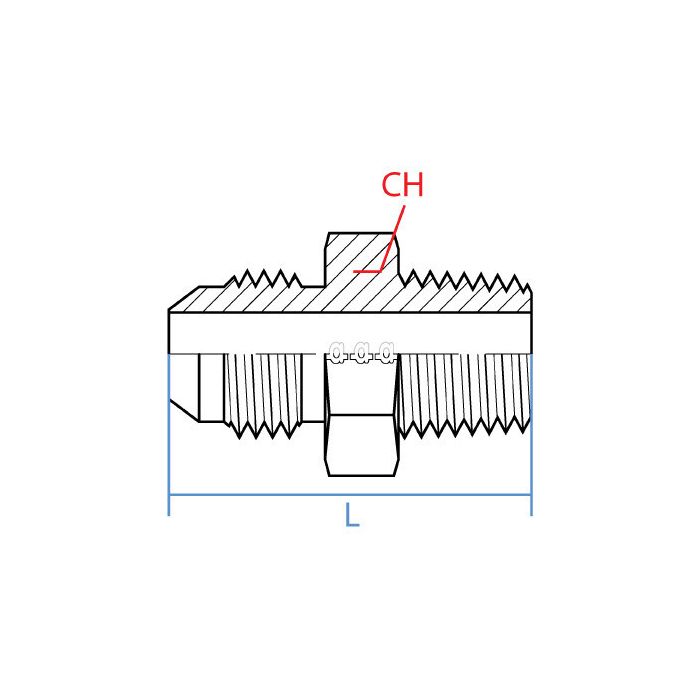

CH Width 28.5mm	L Length 54.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-12-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running BSPT fittings on one end and JIC on the other, will this adapter bridge that gap without needing any extra hardware in between?

Question by: Duane G on Aug 16, 2025, 12:07 PM

That's what it's built for. One end is 1-1/16 - 12 UN JIC male, the other is R 3/4 - 14 BSPT male, so it connects those two thread standards directly. No additional fittings or adapters needed in between. Both sides are 3/4" size, and the straight configuration keeps the hydraulic connections clean and compact. At 54.1mm long and 28.5mm wide, it fits into tight spaces without a lot of fuss.

Answer by: Customer Support on Aug 18, 2025, 7:02 AM

got a hose end that’s 1-1/16 - 12 UN JIC male, will this adapter mate up to it and give me a 3/4 BSPT male on the other side?

Question by: Danny B on Sep 14, 2025, 1:27 PM

For a straight thread changeover like that, it connects a 1-1/16 - 12 UN JIC male on one end to an R 3/4 - 14 BSPT male on the other, with both sides called out as 3/4 inch.

Answer by: Customer Support on Sep 16, 2025, 6:24 AM
