Male Jic X Male Bspt

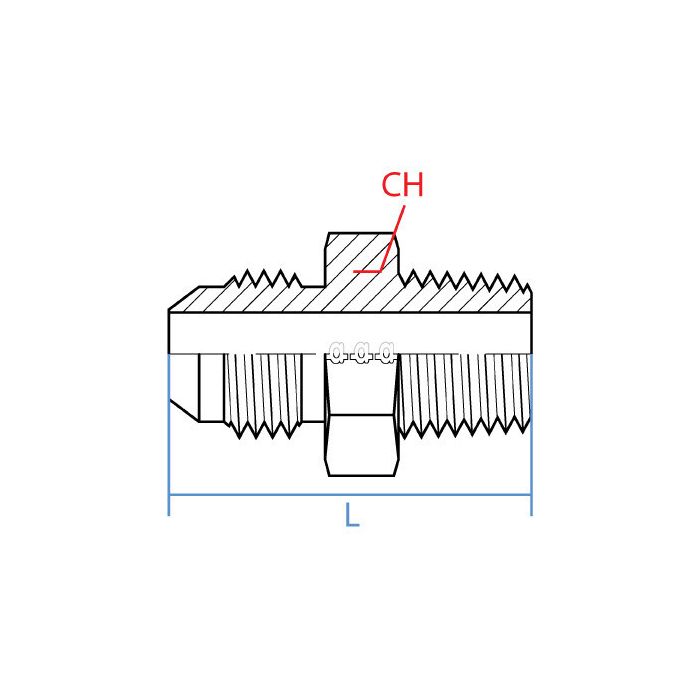

CH Width 28.5mm	L Length 54.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-12-08	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if I'm usin' it for somethin' that vibrates a good bit? I don't want no leaks.

Question by: Peggy M on Feb 8, 2026, 1:10 PM

Steel construction supports use in demanding hydraulic environments where durability and thread integrity are essential, so it should hold up fine.

Answer by: Customer Support on Feb 10, 2026, 10:05 AM

Got a piece of equipment running BSPT fittings and my hydraulic lines are all JIC on the other end. This the kind of adapter that connects them direct without needing extra pieces in between?

Question by: Steve P on May 23, 2025, 7:23 AM

That's what this one does. One end is 3/4" Male JIC with a 1-1/16-12 UN thread, the other is 1/2" Male BSPT with an R 1/2-14 thread. Straight configuration means it goes right between the two connections without any elbow or intermediate fitting involved. Steel construction holds up well in hydraulic environments where you need the threads to stay tight under pressure and regular use.

Answer by: Customer Support on May 24, 2025, 3:16 PM
