Male Jic X Male Bspt 9011-10-12

Specifications

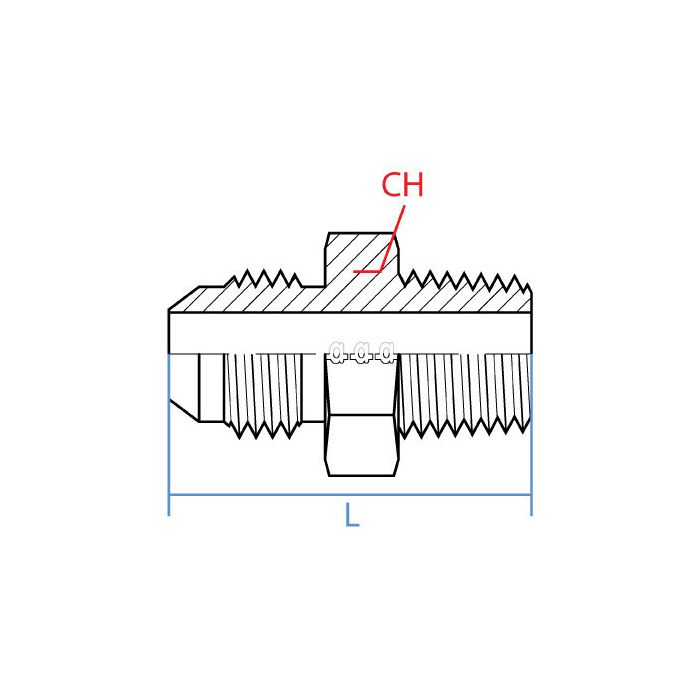

CH Width 27mm	L Length 51.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-10-12	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 7/8-14 UNF JIC male. is this the straight adapter that’ll step me over to a 3/4 BSPT male?

Question by: Scott C on Dec 17, 2025, 9:40 PM

Function-wise it is a straight steel adapter with a 5/8 inch male JIC on one side (7/8 - 14 UNF thread) and a 3/4 inch male BSPT on the other side (R 3/4 - 14 thread). It is meant for connecting those two thread types in-line.

Answer by: Customer Support on Dec 19, 2025, 6:57 AM

Got a hydraulic line running BSPT fittings on one end and JIC on the other, this the right piece to bridge that gap?

Question by: Harold T on Jul 25, 2025, 7:53 PM

That's what this fitting is built for. One end is a 7/8-14 UNF male JIC thread, which corresponds to a 5/8" JIC size, and the other end is an R 3/4-14 male BSPT thread. Both ends are male, so you'd be threading each side into female ports or couplings on your existing lines. The body is steel and runs straight through with no angle, so it keeps your hydraulic connections clean and in-line.

Answer by: Customer Support on Jul 27, 2025, 5:09 PM

Will this fitting work with a standard JIC and Bspt setup?

Question by: Neal B on Jun 5, 2025, 9:42 AM

Yes, this is a straight steel adapter fitting specifically designed to connect a 5/8" male JIC end to a 3/4" male Bspt end.

Answer by: Customer Support on Jun 7, 2025, 6:30 AM
