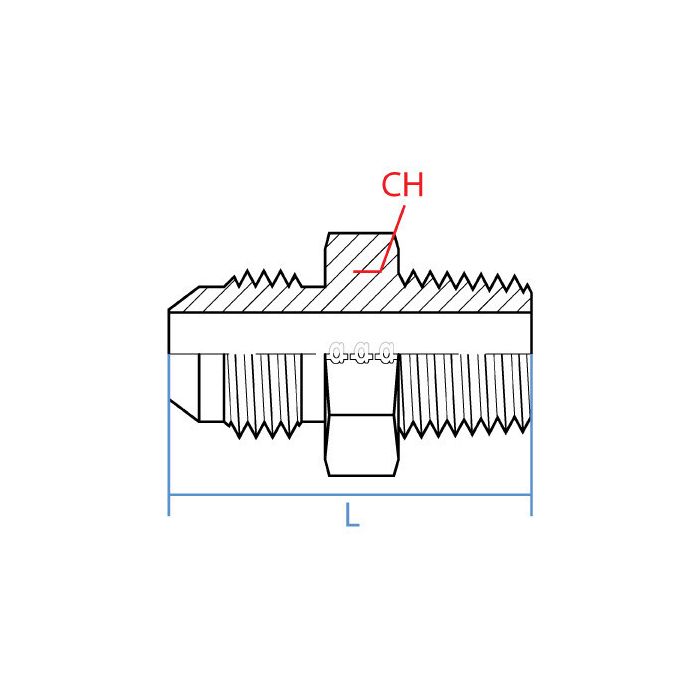

Male Jic X Male Bspt

CH Width 25.5mm	L Length 46.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-10-08	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s 7/8-14 UNF JIC male and the port is R 1/2-14 BSPT female. is this the right little adapter to tie those together?

Question by: Freddie C on Jun 16, 2025, 12:30 PM

For that mix of threads, it’s a direct match. One side is a 7/8 - 14 UNF JIC male (5/8 size), and the other side is an R 1/2 - 14 BSPT male (1/2 size), so it’s meant to bridge a JIC connection over to a BSPT port.

Answer by: Customer Support on Jun 18, 2025, 7:57 AM
