Male Jic X Male Bspt 9011-08-16

Specifications

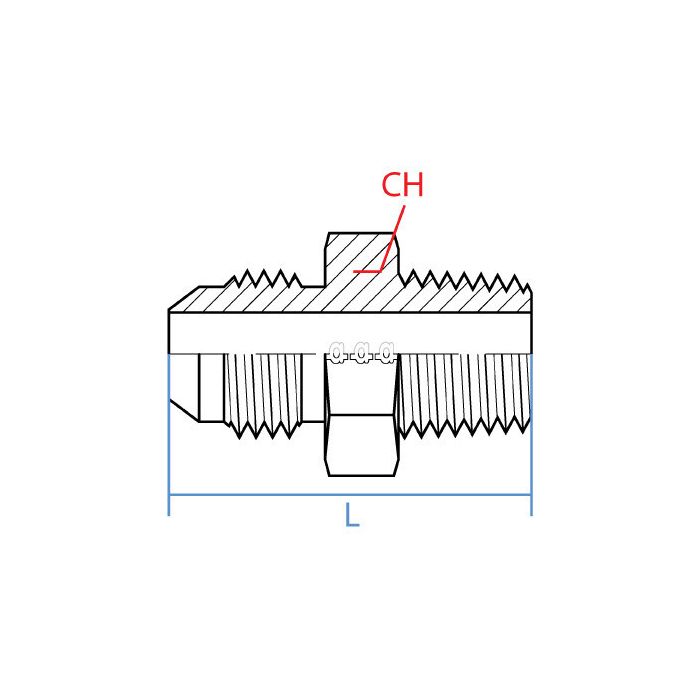

CH Width 35mm	L Length 56.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-08-16	Product Weight 0.44 lbs

Product Questions & Answers 3

Product Questions & Answers

Is that 56.4mm length the total length, end to end?

Question by: Howard P on Dec 10, 2025, 6:08 AM

You're right on the money. That 56.4mm length for this fitting is the total length from the very end of one side to the very end of the other.

Answer by: Customer Support on Dec 11, 2025, 12:45 PM

Got a hydraulic line running BSPT on one end and JIC on the other, this adapter gonna bridge that gap straight through without any reducers or extra fittings?

Question by: Ray R on Jan 20, 2026, 7:09 PM

Straight through is exactly how it works. One end is a 3/4-16 UNF Male JIC at 1/2 inch, and the other is an R 1-11 Male BSPT at 1 inch. No reducers needed, no intermediate fittings. Steel construction keeps it solid for hydraulic line use, and the straight profile means it installs clean without adding awkward angles to your hydraulic connections.

Answer by: Customer Support on Jan 22, 2026, 6:59 AM

got a hose with a 1/2 JIC male end, will this adapter match that and go into a 1 inch bspt port?

Question by: Warren W on Nov 13, 2025, 3:46 PM

The JIC side is a 1/2 inch male with a 3/4-16 UNF thread callout, and the BSPT side is a 1 inch male with an R 1-11 callout. It is a straight steel adapter with male threads on both ends.

Answer by: Customer Support on Nov 15, 2025, 1:31 PM
