Male Jic X Male Bspt

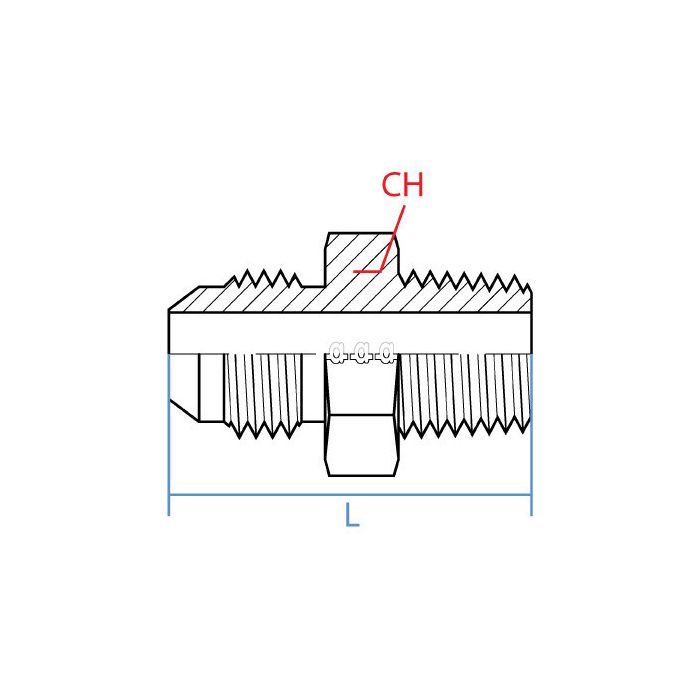

CH Width 27mm	L Length 50.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-08-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC male and i need to land it into a R 3/4-14 BSPT port. is this the right straight adapter?

Question by: Clint S on Feb 5, 2026, 7:46 PM

For that thread combo, yes. One side is a 3/4 - 16 UNF JIC male (listed as 1/2 inch JIC), and the other side is an R 3/4 - 14 BSPT male (3/4 inch BSPT), in a straight steel adapter.

Answer by: Customer Support on Feb 7, 2026, 6:14 AM

Got a machine running BSPT fittings on one end and JIC on the other, will this adapter bridge that gap without needing extra pieces in between?

Question by: Rhonda W on Jul 20, 2025, 9:07 PM

That's what this one's built for. One side is a 3/4-16 UNF JIC male thread, the other is an R 3/4-14 BSPT male thread, so it connects those two standards directly. No additional adapters needed in between. It's a straight configuration, so the connection stays inline without any offset. Steel construction holds up well in industrial setups where you've got real pressure and regular use.

Answer by: Customer Support on Jul 22, 2025, 6:49 AM
