Male Jic X Male Bspt 9011-08-08

Specifications

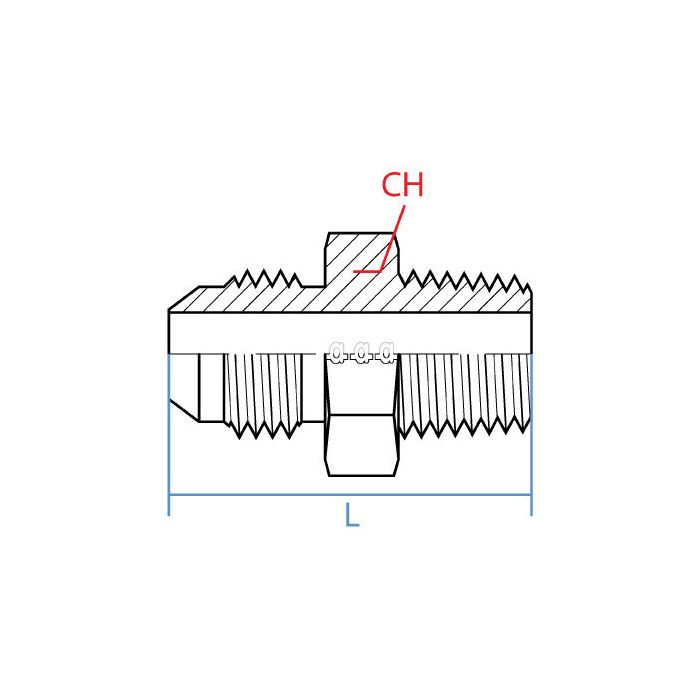

CH Width 22mm	L Length 43.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-08-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running JIC fittings on one end but the equipment I'm hooking into takes BSPT, will this adapter connect the two without needing anything extra?

Question by: Stan D on Sep 25, 2025, 8:53 AM

Straight connection, no extra hardware needed. One end is 3/4-16 UNF male JIC and the other is R 1/2-14 male BSPT, so it bridges those two thread standards directly. Both sides are 1/2 inch nominal size, and the steel construction holds up well in standard industrial hydraulic setups. No thread sealant is required based on how it's built, and at 43.9mm long it stays pretty compact in tight hydraulic connections runs.

Answer by: Customer Support on Sep 27, 2025, 7:27 AM

Will this adapter work for hooking up a pressure gauge that's got a JIC fitting to something with a BSPT thread?

Question by: Brent F on Jan 28, 2026, 9:48 AM

This adapter is designed to connect a male JIC fitting to a male BSPT fitting. It's made of steel, so it should hold up well in industrial settings.

Answer by: Customer Support on Jan 29, 2026, 12:13 PM

got a hose with a 3/4-16 UNF JIC male on one side and a BSPT female port on the other. Is this the right adapter to tie those together

Question by: Clint R on Jun 23, 2025, 10:49 AM

For that combo, you want an adapter that has a male JIC end with 3/4 - 16 UNF threads and a male BSPT end with R 1/2 - 14 threads. This part matches those callouts, and both ends are male, straight style.

Answer by: Customer Support on Jun 24, 2025, 3:38 PM
