Male Jic X Male Bspt

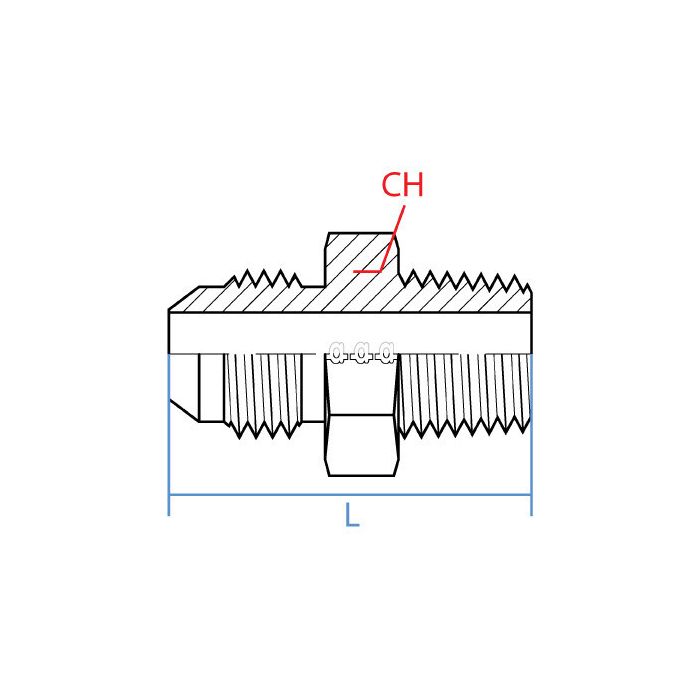

CH Width 20.5mm	L Length 41.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-08-06	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 1/2" JIC on one end and need to tie into a 3/8 BSPT port on a piece of equipment. This the right fitting to bridge that gap?

Question by: Sherry P on Jan 25, 2026, 4:41 PM

That's exactly the application this adapter is built for. One side carries a 1/2" Male JIC with a 3/4-16 UNF thread, and the other side is a 3/8" Male BSPT running R 3/8-19 threads. Both ends are male, so you'd be threading into female JIC and female BSPT ports on your respective components. Steel construction keeps it solid under the kind of stress those connections typically see in working hydraulic systems.

Answer by: Customer Support on Jan 26, 2026, 7:40 PM
