Male Jic X Male Bspt 9011-08-04

Specifications

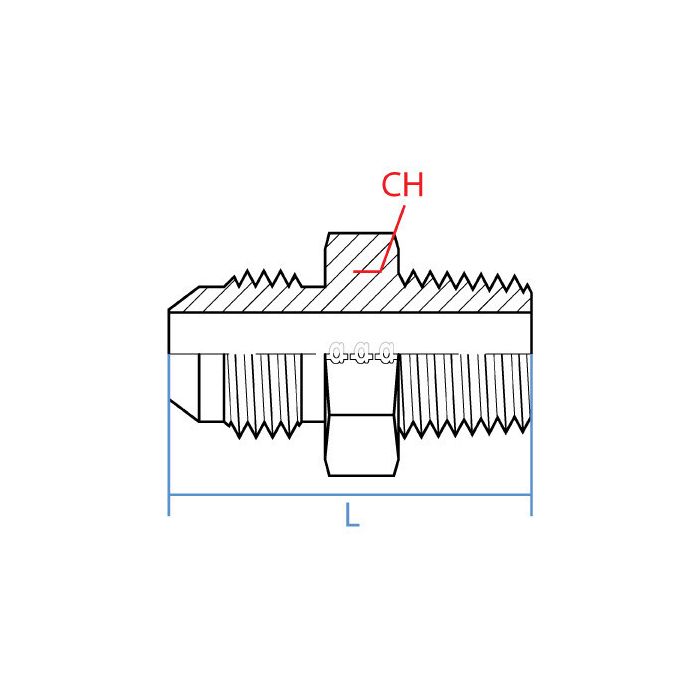

CH Width 20.5mm	L Length 38.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-08-04	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

So this thing connects different thread types, right? What kind of pressure can it handle?

Question by: Norm F on Jan 9, 2026, 12:09 PM

Assembled with steel, this adapter is suitable for standard hydraulic applications. However, pressure ratings aren't specified, so you'll want to verify it's appropriate for your system's requirements.

Answer by: Customer Support on Jan 11, 2026, 6:23 AM

got a hose end that’s 1/2 JIC male, and the port on the block is 1/4 BSPT. is this the right adapter to tie those together?

Question by: Bobby J on Oct 12, 2025, 12:48 PM

For joining those two thread types, this adapter is the match. One side is a 1/2 inch JIC male with 3/4 to 16 UNF threads, and the other side is a 1/4 inch BSPT male with R 1/4 to 19 threads, so it bridges JIC to BSPT in a straight setup.

Answer by: Customer Support on Oct 14, 2025, 10:52 AM

Got a machine running JIC lines that needs to tie into a BSPT port on an imported component. This straight adapter handle that kind of crossover?

Question by: Tony B on Nov 30, 2025, 3:19 PM

That's the kind of situation this fitting is built for. One end is a 1/2" JIC male with a 3/4-16 UNF thread, and the other is a 1/4" BSPT male running R 1/4-19 thread. Steel construction holds up fine in standard hydraulic service, and the straight configuration keeps the hydraulic connections simple when you've got a direct port-to-port connection to make.

Answer by: Customer Support on Dec 2, 2025, 9:37 AM
