Male Jic X Male Bspt

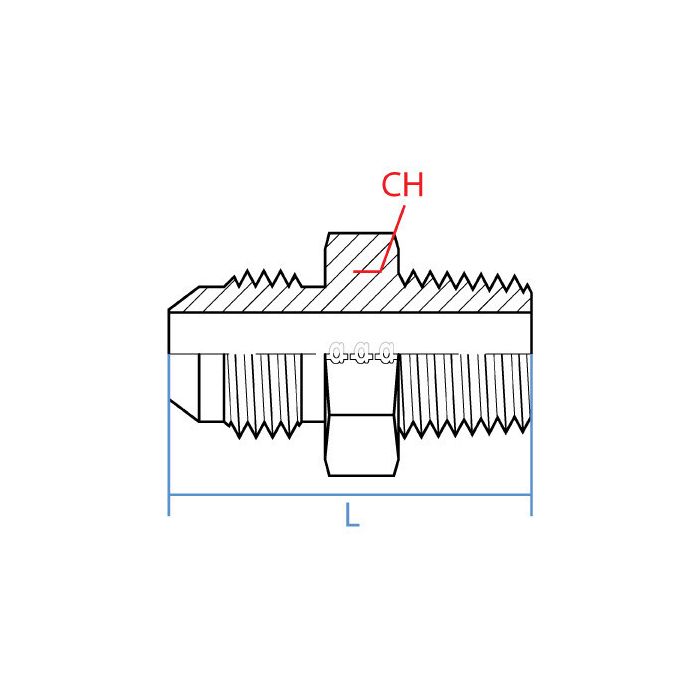

CH Width 22mm	L Length 44.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-06-08	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the length of this fitting?

Question by: Bonnie B on Jul 19, 2025, 5:02 PM

Total length for this Adaptall fitting is 44.6mm.

Answer by: Customer Support on Jul 20, 2025, 7:38 PM

trying to hook a JIC hose up to a BSPT port. is this the right adapter for that

Question by: Hubert K on May 12, 2025, 10:56 AM

For a straight adapter between those two thread types, it matches a 3/8 inch JIC male end with a 9/16-18 UNF thread, and a 1/2 inch BSPT male end with an R 1/2-14 thread.

Answer by: Customer Support on May 13, 2025, 7:45 PM

Got a hydraulic line running JIC fittings on one end and a BSPT port on the other, this the right adapter to bridge that gap?

Question by: Neal M on Aug 29, 2025, 1:20 PM

That's what this fitting handles. One side is 3/8" JIC with a 9/16-18 UNF thread, and the other is 1/2" BSPT with an R 1/2-14 thread, so it connects those two standards directly without any extra hardware in between. Both sides are male, so make sure the ports you're connecting to are female on each end before ordering.

Answer by: Customer Support on Aug 31, 2025, 6:40 AM
