Male Jic X Male Bspt

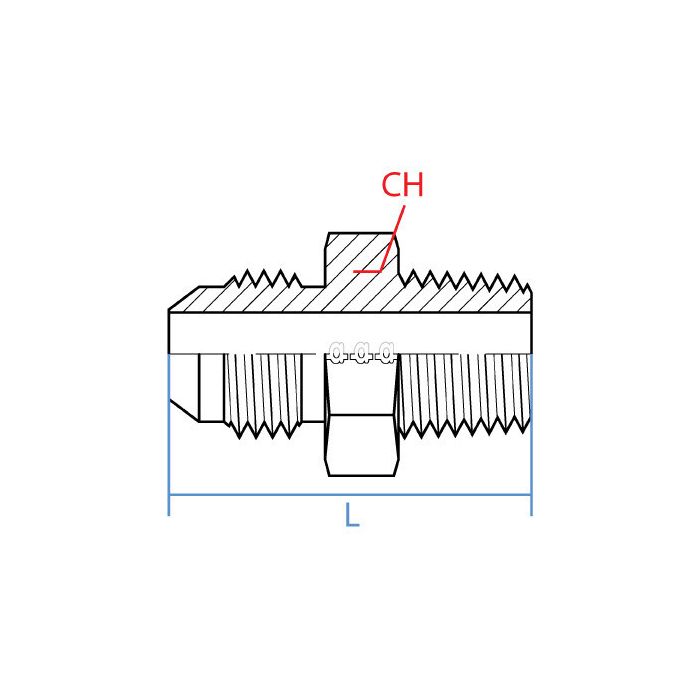

CH Width 16mm	L Length 35.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-06-04	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end thats 9/16-18 UNF JIC, will this screw right onto it and give me a 1/4 BSPT on the other side?

Question by: Roy W on May 8, 2025, 8:18 AM

For a straight adapter that bridges standards, it pairs a male JIC end with 9/16 - 18 UNF threads (3/8 inch JIC) to a male BSPT end with R 1/4 - 19 threads (1/4 inch BSPT), so it is meant for exactly that JIC-to-BSPT transition.

Answer by: Customer Support on May 9, 2025, 4:41 PM
