Male Jic X Male Bspt

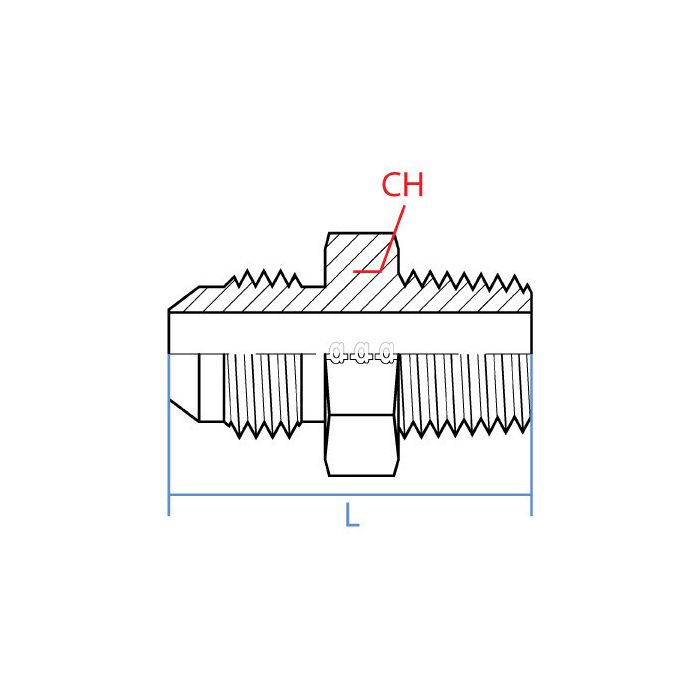

CH Width 16mm	L Length 32mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-06-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook up a 9/16-18 UNF JIC line to a 1/8 BSPT port, is this the right adapter?

Question by: Lee M on Jul 16, 2025, 10:23 AM

For that thread mix, it matches up as a straight male JIC to male BSPT adapter. Side 1 is a 9/16 - 18 UNF male JIC (3/8 inch size), and side 2 is an R 1/8 - 28 male BSPT (1/8 inch size).

Answer by: Customer Support on Jul 18, 2025, 6:12 AM

Will this fitting hold up okay in a hydraulic system running around 2000 psi?

Question by: Freddie P on May 31, 2025, 7:16 AM

This adapter, made from durable steel, should be suitable for hydraulic systems requiring robust connections. It's designed to provide a secure and leak-free connection in demanding industrial conditions.

Answer by: Customer Support on Jun 2, 2025, 7:31 AM
