Male Jic X Male Bspt

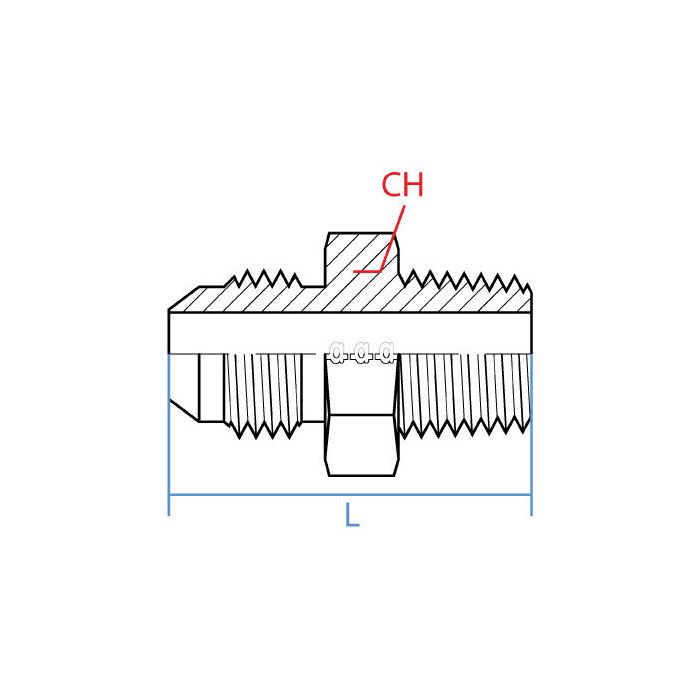

CH Width 17.5mm	L Length 36.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-05-06	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 5/16 jic male line to a 3/8 bspt port, is this the right adapter or am i mixin threads up

Question by: Norm R on Aug 28, 2025, 7:28 PM

For cross-thread hookups like that, this adapter is the straight steel piece that bridges a 5/16 inch JIC male with 1/2-20 UNF threads on one end to a 3/8 inch BSPT male with R 3/8-19 threads on the other.

Answer by: Customer Support on Aug 30, 2025, 6:39 AM

Got a line running JIC on one end and the other end's got British pipe taper threads, will this thing bridge that gap straight across?

Question by: Pete C on Feb 21, 2026, 4:29 PM

That's what it's built for. One end is a 5/16" JIC male (1/2-20 UNF thread) and the other is a 3/8" BSPT male (R 3/8-19 thread), so it connects those two thread standards directly in a straight configuration. No adapting in stages or hunting down a middle piece. Adaptall machines it from steel, so it holds up in standard industrial hydraulic setups without any fuss.

Answer by: Customer Support on Feb 23, 2026, 6:45 AM
